系WHU2021级《系统级程序设计》实验1，节选于CSAPP Lab。
引言
任务介绍
本实验要求你使用课程所学知识拆除“binary bombs”，增强对程序的机器级表示、汇编语言、调试器和逆向工程等方面原理与技能的掌握。
一个“binary bombs”（二进制炸弹，下文将简称为炸弹）是一个Linux可执行程序，包含了6个阶段（或层次、关卡）。炸弹运行的每个阶段要求你输入一个特定字符串，你的输入符合程序预期的输入，该阶段的炸弹就被拆除引信即解除了，否则炸弹“爆炸”打印输出 “BOOM!!!”。
实验的目标是拆除尽可能多的炸弹层次。 每个炸弹阶段考察了机器级程序语言的一个不同方面，难度逐级递增：
- 阶段1：字符串比较
- 阶段2：循环
- 阶段3：条件/分支
- 阶段4：递归调用和栈
- 阶段5：指针
- 阶段6：链表/指针/结构
另外还有一个隐藏阶段，只有当你在第4阶段的解后附加一特定字符串后才会出现。
为完成二进制炸弹拆除任务，你需要使用gdb调试器和objdump来反汇编炸弹的可执行文件并跟踪调试每一阶段的机器代码，从中理解每一汇编语言代码的行为或作用，进而设法推断拆除炸弹所需的目标字符串。（比如在每一阶段的开始代码前和引爆炸弹的函数前设置断点）
实验语言：C；实验环境：Linux
实验步骤
第一步：获取Bomb
在远程桌面的浏览器中打开 http://172.16.2.207:15213 （或打开桌面上的Bomblab Download Page），在二进制炸弹请求表格中输入你的学号和邮箱地址，点击Submit按钮。服务器会构造属于你的炸弹，并以tar文件的形式bombXXX.tar返回给你，其中XXX是一个你的bomb的唯一标识。
解压该tar文件（tar -xvf bombX.tar）得到一个目录./bombXXX，其中包含如下文件：
- README：标识该bomb和所有者。
- bomb：bomb的可执行程序。
- bomb.c：bomb程序的main函数。
第二步：拆除Bomb
本实验的任务就是拆除炸弹。一定要在指定的虚拟机上完成作业，在其他的环境上运行有可能导致失败。
运行./bomb可执行程序需要0或1个命令行参数（详见bomb.c源文件中的main()函数）。如果运行时不指定参数，则该程序打印出欢迎信息后，期望你按行输入每一阶段用来拆除炸弹的字符串，根据你当前输入的字符串决定你是通过相应阶段还是炸弹爆炸导致任务失败。
你也可将拆除每一阶段炸弹的字符串按行组织在一个文本文件中，然后作为运行程序时的唯一一个命令行参数传给程序，程序读入文件中的每一行直到遇到EOF，再转到从stdin等待输入。这样对于你已经拆除的炸弹，就不用每次都重新输入，只用放进文件里即可。
前四个阶段每个10分，第五和第六阶段更难一些，每个15分，满分70分。每输入错误一次，炸弹爆炸，会扣除0.5分（最多扣除20分）。所以你必须小心！要学会单步跟踪调试汇编代码以及学会设置断点。你还要学会如何检查寄存器和内存状态。很好的使用调试器是你在未来的职业生涯中赚到更多money的一项重要技能！
第三步：提交结果
这是一项独立实验，每个人单独完成。bomb程序会自动发送结果到服务器，可以在http://172.16.2.207:15213/scoreboard（或打开桌面上的Bomblab Scoreboard）查看所有人的成绩结果。
由于不同班要求不同，不用点击“提交评测”，以scoreboard分数为准。
提示
下面简要说明完成本实验所需要的一些实验工具：
gdb
为了从二进制可执行程序./bomb中找出触发bomb爆炸的条件，可使用gdb来帮助对程序的分析。GDB是GNU自由软件组织发布的一个强大的交互式程序调试工具。一般来说，GDB主要帮忙你完成下面几方面的功能（更详细描述可参看GDB文档和相关资料）：
- 装载、启动被调试的程序。
- 让被调试的程序在你指定的调试断点处中断执行，方便查看程序变量、寄存器、栈内容等运行现场数据。
- 动态改变程序的执行环境，如修改变量的值。
gdb相关资料：
https://www.gnu.org/software/gdb/
objdump
-
objdump –t该命令可以打印出bomb的符号表。符号表包含了bomb中所有函数、全局变量的名称和存储地址。你可以通过查看函数名得到一些目标程序的信息。
-
objdump –d该命令可用来对bomb中的二进制代码进行反汇编。通过阅读汇编源代码可以发现bomb是如何运行的。但该命令不能告诉你bomb的所有信息，例如一个调用sscanf函数的语句可能显示为：
8048c36: e8 99 fc ff ff call 80488d4 <_init+0x1a0>，你还需要gdb来帮助你确定这个语句的具体功能。
strings
该命令可以显示二进制程序中的所有可打印字符串。
实验步骤提示
下面以第一阶段（第一关）为例介绍实验步骤：首先调用objdump –d bomb > bomb_disas.txt 对bomb进行反汇编并将汇编源代码输出到boomb_disas.txt文本文件中。查看该汇编源代码文件，我们可以在main函数中找到如下语句，从而得知第一关的处理程序包含在main()函数所调用的函数phase_1()中，判断的过程可以参照bomb.c文件源码。汇编代码中地址0x14e8处调用了phase_1函数，
我们在反汇编代码中寻找这个子函数phase_1：
可以看到这个子函数比较小，只有几行汇编代码，可以进行简单阅读（如果汇编代码较多，不建议逐句阅读，而是借用gdb调试工具进行辅助）：我们看到（教科书中已经提到过调用函数的过程），………， 还调用了string_not_equal函数，接着测试%eax是否为零，如果是就跳转到+0x1d处，否则就调用explode_bomb，可以判定这是一个判断两个字符串是否相等的过程。 接下来，使用gdb调试bomb二进制文件：gdb bomb后，运行break phase_1，也就是在phase_1函数处设置一个断点，然后运行run，开始调试。运行disa phase_1，得到如下信息：
可以看到rsi中装入的就是待比较的目标字符串地址，后面给出的0x555555557150就是计算出来的值。可以输入print (char *)0x555555557150，输出是
也可以stepi运行到0x00005555555555f6，然后print /x $rsi得到，
说明%rsi的值确实是0x555555557150，目标字符串的起始位置。 接下来，去设置断点去检测这个答案是否正确，我们kill当前程序的调试。再在explode_bomb处设置断点break explode_bomb，然后run开始运行，按照提示输入这个字符串：“When I get angry, Mr. Bigglesworth gets upset.”（不包括引号）
第一关解除。
特别注意
不要试图去修改发送给服务器端的数据，一旦服务器端检测到错误数据，会自动记录invalid成绩，后续提交的结果及时正确也将无法记录。
参考解说视频
这里还有一段对实验操作的解说视频，供大家参考： 链接:
https://pan.baidu.com/s/1Syja0lELxyrTJsCrrmkSKw
提取码: 9v9s
实验记录
| phase | 答案字符串 | 备注 |
|---|---|---|
| 1 字符串比较 | The future will be better tomorow. | |
| 2 循环 | 0 1 3 6 10 15 | |
| 3 条件/分支switch | 1 r461 | 每个分支都对应一个答案 |
| 4 递归 | 5 2 DrEvil | DrEvil用于触发secret phase |
| 5 指针 | 0 48 | |
| 6 链表/指针/结构 | 4 5 3 1 2 6 | |
| secret 二叉树 | 1001 |
附：Bomb文件 (文件很长，谨慎点开)
`bomb.c`
/*************************************************************************** * Dr. Evil's Insidious Bomb, Version 1.1 * Copyright 2011, Dr. Evil Incorporated. All rights reserved. * * LICENSE: * * Dr. Evil Incorporated (the PERPETRATOR) hereby grants you (the * VICTIM) explicit permission to use this bomb (the BOMB). This is a * time limited license, which expires on the death of the VICTIM. * The PERPETRATOR takes no responsibility for damage, frustration, * insanity, bug-eyes, carpal-tunnel syndrome, loss of sleep, or other * harm to the VICTIM. Unless the PERPETRATOR wants to take credit, * that is. The VICTIM may not distribute this bomb source code to * any enemies of the PERPETRATOR. No VICTIM may debug, * reverse-engineer, run "strings" on, decompile, decrypt, or use any * other technique to gain knowledge of and defuse the BOMB. BOMB * proof clothing may not be worn when handling this program. The * PERPETRATOR will not apologize for the PERPETRATOR's poor sense of * humor. This license is null and void where the BOMB is prohibited * by law. ***************************************************************************/
#include <stdio.h>#include <stdlib.h>#include "support.h"#include "phases.h"
/* * Note to self: Remember to erase this file so my victims will have no * idea what is going on, and so they will all blow up in a * spectaculary fiendish explosion. -- Dr. Evil */
FILE *infile;
int main(int argc, char *argv[]){ char *input;
/* Note to self: remember to port this bomb to Windows and put a * fantastic GUI on it. */
/* When run with no arguments, the bomb reads its input lines * from standard input. */ if (argc == 1) { infile = stdin; }
/* When run with one argument <file>, the bomb reads from <file> * until EOF, and then switches to standard input. Thus, as you * defuse each phase, you can add its defusing string to <file> and * avoid having to retype it. */ else if (argc == 2) { if (!(infile = fopen(argv[1], "r"))) { printf("%s: Error: Couldn't open %s\n", argv[0], argv[1]); exit(8); } }
/* You can't call the bomb with more than 1 command line argument. */ else { printf("Usage: %s [<input_file>]\n", argv[0]); exit(8); }
/* Do all sorts of secret stuff that makes the bomb harder to defuse. */ initialize_bomb();
printf("Welcome to my fiendish little bomb. You have 6 phases with\n"); printf("which to blow yourself up. Have a nice day!\n");
/* Hmm... Six phases must be more secure than one phase! */ input = read_line(); /* Get input */ phase_1(input); /* Run the phase */ phase_defused(); /* Drat! They figured it out! * Let me know how they did it. */ printf("Phase 1 defused. How about the next one?\n");
/* The second phase is harder. No one will ever figure out * how to defuse this... */ input = read_line(); phase_2(input); phase_defused(); printf("That's number 2. Keep going!\n");
/* I guess this is too easy so far. Some more complex code will * confuse people. */ input = read_line(); phase_3(input); phase_defused(); printf("Halfway there!\n");
/* Oh yeah? Well, how good is your math? Try on this saucy problem! */ input = read_line(); phase_4(input); phase_defused(); printf("So you got that one. Try this one.\n");
/* Round and 'round in memory we go, where we stop, the bomb blows! */ input = read_line(); phase_5(input); phase_defused(); printf("Good work! On to the next...\n");
/* This phase will never be used, since no one will get past the * earlier ones. But just in case, make this one extra hard. */ input = read_line(); phase_6(input); phase_defused();
/* Wow, they got it! But isn't something... missing? Perhaps * something they overlooked? Mua ha ha ha ha! */
return 0;}反汇编文件 `bomb_disas`
bomb: file format elf64-x86-64
Disassembly of section .init:
0000000000400ad0 <_init>: 400ad0: 48 83 ec 08 sub $0x8,%rsp 400ad4: 48 8b 05 1d 35 20 00 mov 0x20351d(%rip),%rax # 603ff8 <_DYNAMIC+0x1d0> 400adb: 48 85 c0 test %rax,%rax 400ade: 74 05 je 400ae5 <_init+0x15> 400ae0: e8 0b 01 00 00 callq 400bf0 <__gmon_start__@plt> 400ae5: 48 83 c4 08 add $0x8,%rsp 400ae9: c3 retq
Disassembly of section .plt:
0000000000400af0 <getenv@plt-0x10>: 400af0: ff 35 12 35 20 00 pushq 0x203512(%rip) # 604008 <_GLOBAL_OFFSET_TABLE_+0x8> 400af6: ff 25 14 35 20 00 jmpq *0x203514(%rip) # 604010 <_GLOBAL_OFFSET_TABLE_+0x10> 400afc: 0f 1f 40 00 nopl 0x0(%rax)
0000000000400b00 <getenv@plt>: 400b00: ff 25 12 35 20 00 jmpq *0x203512(%rip) # 604018 <_GLOBAL_OFFSET_TABLE_+0x18> 400b06: 68 00 00 00 00 pushq $0x0 400b0b: e9 e0 ff ff ff jmpq 400af0 <_init+0x20>
0000000000400b10 <strcasecmp@plt>: 400b10: ff 25 0a 35 20 00 jmpq *0x20350a(%rip) # 604020 <_GLOBAL_OFFSET_TABLE_+0x20> 400b16: 68 01 00 00 00 pushq $0x1 400b1b: e9 d0 ff ff ff jmpq 400af0 <_init+0x20>
0000000000400b20 <__errno_location@plt>: 400b20: ff 25 02 35 20 00 jmpq *0x203502(%rip) # 604028 <_GLOBAL_OFFSET_TABLE_+0x28> 400b26: 68 02 00 00 00 pushq $0x2 400b2b: e9 c0 ff ff ff jmpq 400af0 <_init+0x20>
0000000000400b30 <strcpy@plt>: 400b30: ff 25 fa 34 20 00 jmpq *0x2034fa(%rip) # 604030 <_GLOBAL_OFFSET_TABLE_+0x30> 400b36: 68 03 00 00 00 pushq $0x3 400b3b: e9 b0 ff ff ff jmpq 400af0 <_init+0x20>
0000000000400b40 <puts@plt>: 400b40: ff 25 f2 34 20 00 jmpq *0x2034f2(%rip) # 604038 <_GLOBAL_OFFSET_TABLE_+0x38> 400b46: 68 04 00 00 00 pushq $0x4 400b4b: e9 a0 ff ff ff jmpq 400af0 <_init+0x20>
0000000000400b50 <write@plt>: 400b50: ff 25 ea 34 20 00 jmpq *0x2034ea(%rip) # 604040 <_GLOBAL_OFFSET_TABLE_+0x40> 400b56: 68 05 00 00 00 pushq $0x5 400b5b: e9 90 ff ff ff jmpq 400af0 <_init+0x20>
0000000000400b60 <printf@plt>: 400b60: ff 25 e2 34 20 00 jmpq *0x2034e2(%rip) # 604048 <_GLOBAL_OFFSET_TABLE_+0x48> 400b66: 68 06 00 00 00 pushq $0x6 400b6b: e9 80 ff ff ff jmpq 400af0 <_init+0x20>
0000000000400b70 <alarm@plt>: 400b70: ff 25 da 34 20 00 jmpq *0x2034da(%rip) # 604050 <_GLOBAL_OFFSET_TABLE_+0x50> 400b76: 68 07 00 00 00 pushq $0x7 400b7b: e9 70 ff ff ff jmpq 400af0 <_init+0x20>
0000000000400b80 <close@plt>: 400b80: ff 25 d2 34 20 00 jmpq *0x2034d2(%rip) # 604058 <_GLOBAL_OFFSET_TABLE_+0x58> 400b86: 68 08 00 00 00 pushq $0x8 400b8b: e9 60 ff ff ff jmpq 400af0 <_init+0x20>
0000000000400b90 <read@plt>: 400b90: ff 25 ca 34 20 00 jmpq *0x2034ca(%rip) # 604060 <_GLOBAL_OFFSET_TABLE_+0x60> 400b96: 68 09 00 00 00 pushq $0x9 400b9b: e9 50 ff ff ff jmpq 400af0 <_init+0x20>
0000000000400ba0 <__libc_start_main@plt>: 400ba0: ff 25 c2 34 20 00 jmpq *0x2034c2(%rip) # 604068 <_GLOBAL_OFFSET_TABLE_+0x68> 400ba6: 68 0a 00 00 00 pushq $0xa 400bab: e9 40 ff ff ff jmpq 400af0 <_init+0x20>
0000000000400bb0 <fgets@plt>: 400bb0: ff 25 ba 34 20 00 jmpq *0x2034ba(%rip) # 604070 <_GLOBAL_OFFSET_TABLE_+0x70> 400bb6: 68 0b 00 00 00 pushq $0xb 400bbb: e9 30 ff ff ff jmpq 400af0 <_init+0x20>
0000000000400bc0 <signal@plt>: 400bc0: ff 25 b2 34 20 00 jmpq *0x2034b2(%rip) # 604078 <_GLOBAL_OFFSET_TABLE_+0x78> 400bc6: 68 0c 00 00 00 pushq $0xc 400bcb: e9 20 ff ff ff jmpq 400af0 <_init+0x20>
0000000000400bd0 <gethostbyname@plt>: 400bd0: ff 25 aa 34 20 00 jmpq *0x2034aa(%rip) # 604080 <_GLOBAL_OFFSET_TABLE_+0x80> 400bd6: 68 0d 00 00 00 pushq $0xd 400bdb: e9 10 ff ff ff jmpq 400af0 <_init+0x20>
0000000000400be0 <fprintf@plt>: 400be0: ff 25 a2 34 20 00 jmpq *0x2034a2(%rip) # 604088 <_GLOBAL_OFFSET_TABLE_+0x88> 400be6: 68 0e 00 00 00 pushq $0xe 400beb: e9 00 ff ff ff jmpq 400af0 <_init+0x20>
0000000000400bf0 <__gmon_start__@plt>: 400bf0: ff 25 9a 34 20 00 jmpq *0x20349a(%rip) # 604090 <_GLOBAL_OFFSET_TABLE_+0x90> 400bf6: 68 0f 00 00 00 pushq $0xf 400bfb: e9 f0 fe ff ff jmpq 400af0 <_init+0x20>
0000000000400c00 <strtol@plt>: 400c00: ff 25 92 34 20 00 jmpq *0x203492(%rip) # 604098 <_GLOBAL_OFFSET_TABLE_+0x98> 400c06: 68 10 00 00 00 pushq $0x10 400c0b: e9 e0 fe ff ff jmpq 400af0 <_init+0x20>
0000000000400c10 <memcpy@plt>: 400c10: ff 25 8a 34 20 00 jmpq *0x20348a(%rip) # 6040a0 <_GLOBAL_OFFSET_TABLE_+0xa0> 400c16: 68 11 00 00 00 pushq $0x11 400c1b: e9 d0 fe ff ff jmpq 400af0 <_init+0x20>
0000000000400c20 <fflush@plt>: 400c20: ff 25 82 34 20 00 jmpq *0x203482(%rip) # 6040a8 <_GLOBAL_OFFSET_TABLE_+0xa8> 400c26: 68 12 00 00 00 pushq $0x12 400c2b: e9 c0 fe ff ff jmpq 400af0 <_init+0x20>
0000000000400c30 <__isoc99_sscanf@plt>: 400c30: ff 25 7a 34 20 00 jmpq *0x20347a(%rip) # 6040b0 <_GLOBAL_OFFSET_TABLE_+0xb0> 400c36: 68 13 00 00 00 pushq $0x13 400c3b: e9 b0 fe ff ff jmpq 400af0 <_init+0x20>
0000000000400c40 <bcopy@plt>: 400c40: ff 25 72 34 20 00 jmpq *0x203472(%rip) # 6040b8 <_GLOBAL_OFFSET_TABLE_+0xb8> 400c46: 68 14 00 00 00 pushq $0x14 400c4b: e9 a0 fe ff ff jmpq 400af0 <_init+0x20>
0000000000400c50 <fopen@plt>: 400c50: ff 25 6a 34 20 00 jmpq *0x20346a(%rip) # 6040c0 <_GLOBAL_OFFSET_TABLE_+0xc0> 400c56: 68 15 00 00 00 pushq $0x15 400c5b: e9 90 fe ff ff jmpq 400af0 <_init+0x20>
0000000000400c60 <gethostname@plt>: 400c60: ff 25 62 34 20 00 jmpq *0x203462(%rip) # 6040c8 <_GLOBAL_OFFSET_TABLE_+0xc8> 400c66: 68 16 00 00 00 pushq $0x16 400c6b: e9 80 fe ff ff jmpq 400af0 <_init+0x20>
0000000000400c70 <sprintf@plt>: 400c70: ff 25 5a 34 20 00 jmpq *0x20345a(%rip) # 6040d0 <_GLOBAL_OFFSET_TABLE_+0xd0> 400c76: 68 17 00 00 00 pushq $0x17 400c7b: e9 70 fe ff ff jmpq 400af0 <_init+0x20>
0000000000400c80 <exit@plt>: 400c80: ff 25 52 34 20 00 jmpq *0x203452(%rip) # 6040d8 <_GLOBAL_OFFSET_TABLE_+0xd8> 400c86: 68 18 00 00 00 pushq $0x18 400c8b: e9 60 fe ff ff jmpq 400af0 <_init+0x20>
0000000000400c90 <connect@plt>: 400c90: ff 25 4a 34 20 00 jmpq *0x20344a(%rip) # 6040e0 <_GLOBAL_OFFSET_TABLE_+0xe0> 400c96: 68 19 00 00 00 pushq $0x19 400c9b: e9 50 fe ff ff jmpq 400af0 <_init+0x20>
0000000000400ca0 <sleep@plt>: 400ca0: ff 25 42 34 20 00 jmpq *0x203442(%rip) # 6040e8 <_GLOBAL_OFFSET_TABLE_+0xe8> 400ca6: 68 1a 00 00 00 pushq $0x1a 400cab: e9 40 fe ff ff jmpq 400af0 <_init+0x20>
0000000000400cb0 <__ctype_b_loc@plt>: 400cb0: ff 25 3a 34 20 00 jmpq *0x20343a(%rip) # 6040f0 <_GLOBAL_OFFSET_TABLE_+0xf0> 400cb6: 68 1b 00 00 00 pushq $0x1b 400cbb: e9 30 fe ff ff jmpq 400af0 <_init+0x20>
0000000000400cc0 <socket@plt>: 400cc0: ff 25 32 34 20 00 jmpq *0x203432(%rip) # 6040f8 <_GLOBAL_OFFSET_TABLE_+0xf8> 400cc6: 68 1c 00 00 00 pushq $0x1c 400ccb: e9 20 fe ff ff jmpq 400af0 <_init+0x20>
Disassembly of section .text:
0000000000400cd0 <_start>: 400cd0: 31 ed xor %ebp,%ebp 400cd2: 49 89 d1 mov %rdx,%r9 400cd5: 5e pop %rsi 400cd6: 48 89 e2 mov %rsp,%rdx 400cd9: 48 83 e4 f0 and $0xfffffffffffffff0,%rsp 400cdd: 50 push %rax 400cde: 54 push %rsp 400cdf: 49 c7 c0 70 24 40 00 mov $0x402470,%r8 400ce6: 48 c7 c1 00 24 40 00 mov $0x402400,%rcx 400ced: 48 c7 c7 bd 0d 40 00 mov $0x400dbd,%rdi 400cf4: e8 a7 fe ff ff callq 400ba0 <__libc_start_main@plt> 400cf9: f4 hlt 400cfa: 66 0f 1f 44 00 00 nopw 0x0(%rax,%rax,1)
0000000000400d00 <deregister_tm_clones>: 400d00: b8 87 47 60 00 mov $0x604787,%eax 400d05: 55 push %rbp 400d06: 48 2d 80 47 60 00 sub $0x604780,%rax 400d0c: 48 83 f8 0e cmp $0xe,%rax 400d10: 48 89 e5 mov %rsp,%rbp 400d13: 77 02 ja 400d17 <deregister_tm_clones+0x17> 400d15: 5d pop %rbp 400d16: c3 retq 400d17: b8 00 00 00 00 mov $0x0,%eax 400d1c: 48 85 c0 test %rax,%rax 400d1f: 74 f4 je 400d15 <deregister_tm_clones+0x15> 400d21: 5d pop %rbp 400d22: bf 80 47 60 00 mov $0x604780,%edi 400d27: ff e0 jmpq *%rax 400d29: 0f 1f 80 00 00 00 00 nopl 0x0(%rax)
0000000000400d30 <register_tm_clones>: 400d30: b8 80 47 60 00 mov $0x604780,%eax 400d35: 55 push %rbp 400d36: 48 2d 80 47 60 00 sub $0x604780,%rax 400d3c: 48 c1 f8 03 sar $0x3,%rax 400d40: 48 89 e5 mov %rsp,%rbp 400d43: 48 89 c2 mov %rax,%rdx 400d46: 48 c1 ea 3f shr $0x3f,%rdx 400d4a: 48 01 d0 add %rdx,%rax 400d4d: 48 d1 f8 sar %rax 400d50: 75 02 jne 400d54 <register_tm_clones+0x24> 400d52: 5d pop %rbp 400d53: c3 retq 400d54: ba 00 00 00 00 mov $0x0,%edx 400d59: 48 85 d2 test %rdx,%rdx 400d5c: 74 f4 je 400d52 <register_tm_clones+0x22> 400d5e: 5d pop %rbp 400d5f: 48 89 c6 mov %rax,%rsi 400d62: bf 80 47 60 00 mov $0x604780,%edi 400d67: ff e2 jmpq *%rdx 400d69: 0f 1f 80 00 00 00 00 nopl 0x0(%rax)
0000000000400d70 <__do_global_dtors_aux>: 400d70: 80 3d 21 3a 20 00 00 cmpb $0x0,0x203a21(%rip) # 604798 <completed.6355> 400d77: 75 11 jne 400d8a <__do_global_dtors_aux+0x1a> 400d79: 55 push %rbp 400d7a: 48 89 e5 mov %rsp,%rbp 400d7d: e8 7e ff ff ff callq 400d00 <deregister_tm_clones> 400d82: 5d pop %rbp 400d83: c6 05 0e 3a 20 00 01 movb $0x1,0x203a0e(%rip) # 604798 <completed.6355> 400d8a: f3 c3 repz retq 400d8c: 0f 1f 40 00 nopl 0x0(%rax)
0000000000400d90 <frame_dummy>: 400d90: 48 83 3d 88 30 20 00 cmpq $0x0,0x203088(%rip) # 603e20 <__JCR_END__> 400d97: 00 400d98: 74 1e je 400db8 <frame_dummy+0x28> 400d9a: b8 00 00 00 00 mov $0x0,%eax 400d9f: 48 85 c0 test %rax,%rax 400da2: 74 14 je 400db8 <frame_dummy+0x28> 400da4: 55 push %rbp 400da5: bf 20 3e 60 00 mov $0x603e20,%edi 400daa: 48 89 e5 mov %rsp,%rbp 400dad: ff d0 callq *%rax 400daf: 5d pop %rbp 400db0: e9 7b ff ff ff jmpq 400d30 <register_tm_clones> 400db5: 0f 1f 00 nopl (%rax) 400db8: e9 73 ff ff ff jmpq 400d30 <register_tm_clones>
0000000000400dbd <main>: 400dbd: 53 push %rbx 400dbe: 83 ff 01 cmp $0x1,%edi 400dc1: 75 10 jne 400dd3 <main+0x16> 400dc3: 48 8b 05 be 39 20 00 mov 0x2039be(%rip),%rax # 604788 <stdin@@GLIBC_2.2.5> 400dca: 48 89 05 cf 39 20 00 mov %rax,0x2039cf(%rip) # 6047a0 <infile> 400dd1: eb 59 jmp 400e2c <main+0x6f> 400dd3: 48 89 f3 mov %rsi,%rbx 400dd6: 83 ff 02 cmp $0x2,%edi 400dd9: 75 35 jne 400e10 <main+0x53> 400ddb: 48 8b 7e 08 mov 0x8(%rsi),%rdi 400ddf: be 90 24 40 00 mov $0x402490,%esi 400de4: e8 67 fe ff ff callq 400c50 <fopen@plt> 400de9: 48 89 05 b0 39 20 00 mov %rax,0x2039b0(%rip) # 6047a0 <infile> 400df0: 48 85 c0 test %rax,%rax 400df3: 75 37 jne 400e2c <main+0x6f> 400df5: 48 8b 53 08 mov 0x8(%rbx),%rdx 400df9: 48 8b 33 mov (%rbx),%rsi 400dfc: bf 92 24 40 00 mov $0x402492,%edi 400e01: e8 5a fd ff ff callq 400b60 <printf@plt> 400e06: bf 08 00 00 00 mov $0x8,%edi 400e0b: e8 70 fe ff ff callq 400c80 <exit@plt> 400e10: 48 8b 36 mov (%rsi),%rsi 400e13: bf af 24 40 00 mov $0x4024af,%edi 400e18: b8 00 00 00 00 mov $0x0,%eax 400e1d: e8 3e fd ff ff callq 400b60 <printf@plt> 400e22: bf 08 00 00 00 mov $0x8,%edi 400e27: e8 54 fe ff ff callq 400c80 <exit@plt> 400e2c: e8 16 06 00 00 callq 401447 <initialize_bomb> 400e31: bf 18 25 40 00 mov $0x402518,%edi 400e36: e8 05 fd ff ff callq 400b40 <puts@plt> 400e3b: bf 58 25 40 00 mov $0x402558,%edi 400e40: e8 fb fc ff ff callq 400b40 <puts@plt> 400e45: e8 b7 08 00 00 callq 401701 <read_line> 400e4a: 48 89 c7 mov %rax,%rdi 400e4d: e8 9e 00 00 00 callq 400ef0 <phase_1> 400e52: e8 d0 09 00 00 callq 401827 <phase_defused> 400e57: bf 88 25 40 00 mov $0x402588,%edi 400e5c: e8 df fc ff ff callq 400b40 <puts@plt> 400e61: e8 9b 08 00 00 callq 401701 <read_line> 400e66: 48 89 c7 mov %rax,%rdi 400e69: e8 9e 00 00 00 callq 400f0c <phase_2> 400e6e: e8 b4 09 00 00 callq 401827 <phase_defused> 400e73: bf c9 24 40 00 mov $0x4024c9,%edi 400e78: e8 c3 fc ff ff callq 400b40 <puts@plt> 400e7d: e8 7f 08 00 00 callq 401701 <read_line> 400e82: 48 89 c7 mov %rax,%rdi 400e85: e8 cd 00 00 00 callq 400f57 <phase_3> 400e8a: e8 98 09 00 00 callq 401827 <phase_defused> 400e8f: bf e7 24 40 00 mov $0x4024e7,%edi 400e94: e8 a7 fc ff ff callq 400b40 <puts@plt> 400e99: e8 63 08 00 00 callq 401701 <read_line> 400e9e: 48 89 c7 mov %rax,%rdi 400ea1: e8 3c 02 00 00 callq 4010e2 <phase_4> 400ea6: e8 7c 09 00 00 callq 401827 <phase_defused> 400eab: bf b8 25 40 00 mov $0x4025b8,%edi 400eb0: e8 8b fc ff ff callq 400b40 <puts@plt> 400eb5: e8 47 08 00 00 callq 401701 <read_line> 400eba: 48 89 c7 mov %rax,%rdi 400ebd: e8 77 02 00 00 callq 401139 <phase_5> 400ec2: e8 60 09 00 00 callq 401827 <phase_defused> 400ec7: bf f6 24 40 00 mov $0x4024f6,%edi 400ecc: e8 6f fc ff ff callq 400b40 <puts@plt> 400ed1: e8 2b 08 00 00 callq 401701 <read_line> 400ed6: 48 89 c7 mov %rax,%rdi 400ed9: e8 c8 02 00 00 callq 4011a6 <phase_6> 400ede: e8 44 09 00 00 callq 401827 <phase_defused> 400ee3: b8 00 00 00 00 mov $0x0,%eax 400ee8: 5b pop %rbx 400ee9: c3 retq 400eea: 66 0f 1f 44 00 00 nopw 0x0(%rax,%rax,1)
0000000000400ef0 <phase_1>: 400ef0: 48 83 ec 08 sub $0x8,%rsp 400ef4: be e0 25 40 00 mov $0x4025e0,%esi 400ef9: e8 e0 04 00 00 callq 4013de <strings_not_equal> 400efe: 85 c0 test %eax,%eax 400f00: 74 05 je 400f07 <phase_1+0x17> 400f02: e8 82 07 00 00 callq 401689 <explode_bomb> 400f07: 48 83 c4 08 add $0x8,%rsp 400f0b: c3 retq
0000000000400f0c <phase_2>: 400f0c: 55 push %rbp 400f0d: 53 push %rbx 400f0e: 48 83 ec 28 sub $0x28,%rsp 400f12: 48 89 e6 mov %rsp,%rsi 400f15: e8 a5 07 00 00 callq 4016bf <read_six_numbers> 400f1a: 83 3c 24 00 cmpl $0x0,(%rsp) 400f1e: 79 24 jns 400f44 <phase_2+0x38> 400f20: e8 64 07 00 00 callq 401689 <explode_bomb> 400f25: eb 1d jmp 400f44 <phase_2+0x38> 400f27: 89 d8 mov %ebx,%eax 400f29: 03 45 fc add -0x4(%rbp),%eax 400f2c: 39 45 00 cmp %eax,0x0(%rbp) 400f2f: 74 05 je 400f36 <phase_2+0x2a> 400f31: e8 53 07 00 00 callq 401689 <explode_bomb> 400f36: 83 c3 01 add $0x1,%ebx 400f39: 48 83 c5 04 add $0x4,%rbp 400f3d: 83 fb 06 cmp $0x6,%ebx 400f40: 75 e5 jne 400f27 <phase_2+0x1b> 400f42: eb 0c jmp 400f50 <phase_2+0x44> 400f44: 48 8d 6c 24 04 lea 0x4(%rsp),%rbp 400f49: bb 01 00 00 00 mov $0x1,%ebx 400f4e: eb d7 jmp 400f27 <phase_2+0x1b> 400f50: 48 83 c4 28 add $0x28,%rsp 400f54: 5b pop %rbx 400f55: 5d pop %rbp 400f56: c3 retq
0000000000400f57 <phase_3>: 400f57: 48 83 ec 18 sub $0x18,%rsp 400f5b: 4c 8d 44 24 08 lea 0x8(%rsp),%r8 400f60: 48 8d 4c 24 07 lea 0x7(%rsp),%rcx 400f65: 48 8d 54 24 0c lea 0xc(%rsp),%rdx 400f6a: be 2e 26 40 00 mov $0x40262e,%esi 400f6f: b8 00 00 00 00 mov $0x0,%eax 400f74: e8 b7 fc ff ff callq 400c30 <__isoc99_sscanf@plt> 400f79: 83 f8 02 cmp $0x2,%eax 400f7c: 7f 05 jg 400f83 <phase_3+0x2c> 400f7e: e8 06 07 00 00 callq 401689 <explode_bomb> 400f83: 83 7c 24 0c 07 cmpl $0x7,0xc(%rsp) 400f88: 0f 87 fc 00 00 00 ja 40108a <phase_3+0x133> 400f8e: 8b 44 24 0c mov 0xc(%rsp),%eax 400f92: ff 24 c5 40 26 40 00 jmpq *0x402640(,%rax,8) 400f99: b8 44 00 00 00 mov $0x44,%eax 400f9e: 81 7c 24 08 91 02 00 cmpl $0x291,0x8(%rsp) 400fa5: 00 400fa6: 0f 84 e8 00 00 00 je 401094 <phase_3+0x13d> 400fac: e8 d8 06 00 00 callq 401689 <explode_bomb> 400fb1: b8 44 00 00 00 mov $0x44,%eax 400fb6: e9 d9 00 00 00 jmpq 401094 <phase_3+0x13d> 400fbb: b8 72 00 00 00 mov $0x72,%eax 400fc0: 81 7c 24 08 cd 01 00 cmpl $0x1cd,0x8(%rsp) 400fc7: 00 400fc8: 0f 84 c6 00 00 00 je 401094 <phase_3+0x13d> 400fce: e8 b6 06 00 00 callq 401689 <explode_bomb> 400fd3: b8 72 00 00 00 mov $0x72,%eax 400fd8: e9 b7 00 00 00 jmpq 401094 <phase_3+0x13d> 400fdd: b8 59 00 00 00 mov $0x59,%eax 400fe2: 81 7c 24 08 a5 00 00 cmpl $0xa5,0x8(%rsp) 400fe9: 00 400fea: 0f 84 a4 00 00 00 je 401094 <phase_3+0x13d> 400ff0: e8 94 06 00 00 callq 401689 <explode_bomb> 400ff5: b8 59 00 00 00 mov $0x59,%eax 400ffa: e9 95 00 00 00 jmpq 401094 <phase_3+0x13d> 400fff: b8 79 00 00 00 mov $0x79,%eax 401004: 81 7c 24 08 2a 01 00 cmpl $0x12a,0x8(%rsp) 40100b: 00 40100c: 0f 84 82 00 00 00 je 401094 <phase_3+0x13d> 401012: e8 72 06 00 00 callq 401689 <explode_bomb> 401017: b8 79 00 00 00 mov $0x79,%eax 40101c: eb 76 jmp 401094 <phase_3+0x13d> 40101e: b8 51 00 00 00 mov $0x51,%eax 401023: 81 7c 24 08 50 02 00 cmpl $0x250,0x8(%rsp) 40102a: 00 40102b: 74 67 je 401094 <phase_3+0x13d> 40102d: e8 57 06 00 00 callq 401689 <explode_bomb> 401032: b8 51 00 00 00 mov $0x51,%eax 401037: eb 5b jmp 401094 <phase_3+0x13d> 401039: b8 4b 00 00 00 mov $0x4b,%eax 40103e: 81 7c 24 08 76 02 00 cmpl $0x276,0x8(%rsp) 401045: 00 401046: 74 4c je 401094 <phase_3+0x13d> 401048: e8 3c 06 00 00 callq 401689 <explode_bomb> 40104d: b8 4b 00 00 00 mov $0x4b,%eax 401052: eb 40 jmp 401094 <phase_3+0x13d> 401054: b8 78 00 00 00 mov $0x78,%eax 401059: 81 7c 24 08 cd 03 00 cmpl $0x3cd,0x8(%rsp) 401060: 00 401061: 74 31 je 401094 <phase_3+0x13d> 401063: e8 21 06 00 00 callq 401689 <explode_bomb> 401068: b8 78 00 00 00 mov $0x78,%eax 40106d: eb 25 jmp 401094 <phase_3+0x13d> 40106f: b8 45 00 00 00 mov $0x45,%eax 401074: 81 7c 24 08 2e 03 00 cmpl $0x32e,0x8(%rsp) 40107b: 00 40107c: 74 16 je 401094 <phase_3+0x13d> 40107e: e8 06 06 00 00 callq 401689 <explode_bomb> 401083: b8 45 00 00 00 mov $0x45,%eax 401088: eb 0a jmp 401094 <phase_3+0x13d> 40108a: e8 fa 05 00 00 callq 401689 <explode_bomb> 40108f: b8 76 00 00 00 mov $0x76,%eax 401094: 3a 44 24 07 cmp 0x7(%rsp),%al 401098: 74 05 je 40109f <phase_3+0x148> 40109a: e8 ea 05 00 00 callq 401689 <explode_bomb> 40109f: 48 83 c4 18 add $0x18,%rsp 4010a3: c3 retq
00000000004010a4 <func4>: 4010a4: 48 83 ec 08 sub $0x8,%rsp 4010a8: 89 d0 mov %edx,%eax 4010aa: 29 f0 sub %esi,%eax 4010ac: 89 c1 mov %eax,%ecx 4010ae: c1 e9 1f shr $0x1f,%ecx 4010b1: 01 c8 add %ecx,%eax 4010b3: d1 f8 sar %eax 4010b5: 8d 0c 30 lea (%rax,%rsi,1),%ecx 4010b8: 39 f9 cmp %edi,%ecx 4010ba: 7e 0c jle 4010c8 <func4+0x24> 4010bc: 8d 51 ff lea -0x1(%rcx),%edx 4010bf: e8 e0 ff ff ff callq 4010a4 <func4> 4010c4: 01 c0 add %eax,%eax 4010c6: eb 15 jmp 4010dd <func4+0x39> 4010c8: b8 00 00 00 00 mov $0x0,%eax 4010cd: 39 f9 cmp %edi,%ecx 4010cf: 7d 0c jge 4010dd <func4+0x39> 4010d1: 8d 71 01 lea 0x1(%rcx),%esi 4010d4: e8 cb ff ff ff callq 4010a4 <func4> 4010d9: 8d 44 00 01 lea 0x1(%rax,%rax,1),%eax 4010dd: 48 83 c4 08 add $0x8,%rsp 4010e1: c3 retq
00000000004010e2 <phase_4>: 4010e2: 48 83 ec 18 sub $0x18,%rsp 4010e6: 48 8d 4c 24 08 lea 0x8(%rsp),%rcx 4010eb: 48 8d 54 24 0c lea 0xc(%rsp),%rdx 4010f0: be e1 28 40 00 mov $0x4028e1,%esi 4010f5: b8 00 00 00 00 mov $0x0,%eax 4010fa: e8 31 fb ff ff callq 400c30 <__isoc99_sscanf@plt> 4010ff: 83 f8 02 cmp $0x2,%eax 401102: 75 07 jne 40110b <phase_4+0x29> 401104: 83 7c 24 0c 0e cmpl $0xe,0xc(%rsp) 401109: 76 05 jbe 401110 <phase_4+0x2e> 40110b: e8 79 05 00 00 callq 401689 <explode_bomb> 401110: ba 0e 00 00 00 mov $0xe,%edx 401115: be 00 00 00 00 mov $0x0,%esi 40111a: 8b 7c 24 0c mov 0xc(%rsp),%edi 40111e: e8 81 ff ff ff callq 4010a4 <func4> 401123: 83 f8 02 cmp $0x2,%eax 401126: 75 07 jne 40112f <phase_4+0x4d> 401128: 83 7c 24 08 02 cmpl $0x2,0x8(%rsp) 40112d: 74 05 je 401134 <phase_4+0x52> 40112f: e8 55 05 00 00 callq 401689 <explode_bomb> 401134: 48 83 c4 18 add $0x18,%rsp 401138: c3 retq
0000000000401139 <phase_5>: 401139: 48 83 ec 18 sub $0x18,%rsp 40113d: 48 8d 4c 24 08 lea 0x8(%rsp),%rcx 401142: 48 8d 54 24 0c lea 0xc(%rsp),%rdx 401147: be e1 28 40 00 mov $0x4028e1,%esi 40114c: b8 00 00 00 00 mov $0x0,%eax 401151: e8 da fa ff ff callq 400c30 <__isoc99_sscanf@plt> 401156: 83 f8 01 cmp $0x1,%eax 401159: 7f 05 jg 401160 <phase_5+0x27> 40115b: e8 29 05 00 00 callq 401689 <explode_bomb> 401160: 8b 44 24 0c mov 0xc(%rsp),%eax 401164: 83 e0 0f and $0xf,%eax 401167: 89 44 24 0c mov %eax,0xc(%rsp) 40116b: 83 f8 0f cmp $0xf,%eax 40116e: 74 2c je 40119c <phase_5+0x63> 401170: b9 00 00 00 00 mov $0x0,%ecx 401175: ba 00 00 00 00 mov $0x0,%edx 40117a: 83 c2 01 add $0x1,%edx 40117d: 48 98 cltq 40117f: 8b 04 85 80 26 40 00 mov 0x402680(,%rax,4),%eax 401186: 01 c1 add %eax,%ecx 401188: 83 f8 0f cmp $0xf,%eax 40118b: 75 ed jne 40117a <phase_5+0x41> 40118d: 89 44 24 0c mov %eax,0xc(%rsp) 401191: 83 fa 06 cmp $0x6,%edx 401194: 75 06 jne 40119c <phase_5+0x63> 401196: 3b 4c 24 08 cmp 0x8(%rsp),%ecx 40119a: 74 05 je 4011a1 <phase_5+0x68> 40119c: e8 e8 04 00 00 callq 401689 <explode_bomb> 4011a1: 48 83 c4 18 add $0x18,%rsp 4011a5: c3 retq
00000000004011a6 <phase_6>: 4011a6: 41 56 push %r14 4011a8: 41 55 push %r13 4011aa: 41 54 push %r12 4011ac: 55 push %rbp 4011ad: 53 push %rbx 4011ae: 48 83 ec 50 sub $0x50,%rsp 4011b2: 4c 8d 6c 24 30 lea 0x30(%rsp),%r13 4011b7: 4c 89 ee mov %r13,%rsi 4011ba: e8 00 05 00 00 callq 4016bf <read_six_numbers> 4011bf: 4d 89 ee mov %r13,%r14 4011c2: 41 bc 00 00 00 00 mov $0x0,%r12d 4011c8: 4c 89 ed mov %r13,%rbp 4011cb: 41 8b 45 00 mov 0x0(%r13),%eax 4011cf: 83 e8 01 sub $0x1,%eax 4011d2: 83 f8 05 cmp $0x5,%eax 4011d5: 76 05 jbe 4011dc <phase_6+0x36> 4011d7: e8 ad 04 00 00 callq 401689 <explode_bomb> 4011dc: 41 83 c4 01 add $0x1,%r12d 4011e0: 41 83 fc 06 cmp $0x6,%r12d 4011e4: 74 22 je 401208 <phase_6+0x62> 4011e6: 44 89 e3 mov %r12d,%ebx 4011e9: 48 63 c3 movslq %ebx,%rax 4011ec: 8b 44 84 30 mov 0x30(%rsp,%rax,4),%eax 4011f0: 39 45 00 cmp %eax,0x0(%rbp) 4011f3: 75 05 jne 4011fa <phase_6+0x54> 4011f5: e8 8f 04 00 00 callq 401689 <explode_bomb> 4011fa: 83 c3 01 add $0x1,%ebx 4011fd: 83 fb 05 cmp $0x5,%ebx 401200: 7e e7 jle 4011e9 <phase_6+0x43> 401202: 49 83 c5 04 add $0x4,%r13 401206: eb c0 jmp 4011c8 <phase_6+0x22> 401208: 48 8d 74 24 48 lea 0x48(%rsp),%rsi 40120d: 4c 89 f0 mov %r14,%rax 401210: b9 07 00 00 00 mov $0x7,%ecx 401215: 89 ca mov %ecx,%edx 401217: 2b 10 sub (%rax),%edx 401219: 89 10 mov %edx,(%rax) 40121b: 48 83 c0 04 add $0x4,%rax 40121f: 48 39 f0 cmp %rsi,%rax 401222: 75 f1 jne 401215 <phase_6+0x6f> 401224: be 00 00 00 00 mov $0x0,%esi 401229: eb 20 jmp 40124b <phase_6+0xa5> 40122b: 48 8b 52 08 mov 0x8(%rdx),%rdx 40122f: 83 c0 01 add $0x1,%eax 401232: 39 c8 cmp %ecx,%eax 401234: 75 f5 jne 40122b <phase_6+0x85> 401236: eb 05 jmp 40123d <phase_6+0x97> 401238: ba f0 42 60 00 mov $0x6042f0,%edx 40123d: 48 89 14 74 mov %rdx,(%rsp,%rsi,2) 401241: 48 83 c6 04 add $0x4,%rsi 401245: 48 83 fe 18 cmp $0x18,%rsi 401249: 74 15 je 401260 <phase_6+0xba> 40124b: 8b 4c 34 30 mov 0x30(%rsp,%rsi,1),%ecx 40124f: 83 f9 01 cmp $0x1,%ecx 401252: 7e e4 jle 401238 <phase_6+0x92> 401254: b8 01 00 00 00 mov $0x1,%eax 401259: ba f0 42 60 00 mov $0x6042f0,%edx 40125e: eb cb jmp 40122b <phase_6+0x85> 401260: 48 8b 1c 24 mov (%rsp),%rbx 401264: 48 8d 44 24 08 lea 0x8(%rsp),%rax 401269: 48 8d 74 24 30 lea 0x30(%rsp),%rsi 40126e: 48 89 d9 mov %rbx,%rcx 401271: 48 8b 10 mov (%rax),%rdx 401274: 48 89 51 08 mov %rdx,0x8(%rcx) 401278: 48 83 c0 08 add $0x8,%rax 40127c: 48 39 f0 cmp %rsi,%rax 40127f: 74 05 je 401286 <phase_6+0xe0> 401281: 48 89 d1 mov %rdx,%rcx 401284: eb eb jmp 401271 <phase_6+0xcb> 401286: 48 c7 42 08 00 00 00 movq $0x0,0x8(%rdx) 40128d: 00 40128e: bd 05 00 00 00 mov $0x5,%ebp 401293: 48 8b 43 08 mov 0x8(%rbx),%rax 401297: 8b 00 mov (%rax),%eax 401299: 39 03 cmp %eax,(%rbx) 40129b: 7d 05 jge 4012a2 <phase_6+0xfc> 40129d: e8 e7 03 00 00 callq 401689 <explode_bomb> 4012a2: 48 8b 5b 08 mov 0x8(%rbx),%rbx 4012a6: 83 ed 01 sub $0x1,%ebp 4012a9: 75 e8 jne 401293 <phase_6+0xed> 4012ab: 48 83 c4 50 add $0x50,%rsp 4012af: 5b pop %rbx 4012b0: 5d pop %rbp 4012b1: 41 5c pop %r12 4012b3: 41 5d pop %r13 4012b5: 41 5e pop %r14 4012b7: c3 retq
00000000004012b8 <fun7>: 4012b8: 48 83 ec 08 sub $0x8,%rsp 4012bc: 48 85 ff test %rdi,%rdi 4012bf: 74 2b je 4012ec <fun7+0x34> 4012c1: 8b 17 mov (%rdi),%edx 4012c3: 39 f2 cmp %esi,%edx 4012c5: 7e 0d jle 4012d4 <fun7+0x1c> 4012c7: 48 8b 7f 08 mov 0x8(%rdi),%rdi 4012cb: e8 e8 ff ff ff callq 4012b8 <fun7> 4012d0: 01 c0 add %eax,%eax 4012d2: eb 1d jmp 4012f1 <fun7+0x39> 4012d4: b8 00 00 00 00 mov $0x0,%eax 4012d9: 39 f2 cmp %esi,%edx 4012db: 74 14 je 4012f1 <fun7+0x39> 4012dd: 48 8b 7f 10 mov 0x10(%rdi),%rdi 4012e1: e8 d2 ff ff ff callq 4012b8 <fun7> 4012e6: 8d 44 00 01 lea 0x1(%rax,%rax,1),%eax 4012ea: eb 05 jmp 4012f1 <fun7+0x39> 4012ec: b8 ff ff ff ff mov $0xffffffff,%eax 4012f1: 48 83 c4 08 add $0x8,%rsp 4012f5: c3 retq
00000000004012f6 <secret_phase>: 4012f6: 53 push %rbx 4012f7: e8 05 04 00 00 callq 401701 <read_line> 4012fc: ba 0a 00 00 00 mov $0xa,%edx 401301: be 00 00 00 00 mov $0x0,%esi 401306: 48 89 c7 mov %rax,%rdi 401309: e8 f2 f8 ff ff callq 400c00 <strtol@plt> 40130e: 48 89 c3 mov %rax,%rbx 401311: 8d 40 ff lea -0x1(%rax),%eax 401314: 3d e8 03 00 00 cmp $0x3e8,%eax 401319: 76 05 jbe 401320 <secret_phase+0x2a> 40131b: e8 69 03 00 00 callq 401689 <explode_bomb> 401320: 89 de mov %ebx,%esi 401322: bf 10 41 60 00 mov $0x604110,%edi 401327: e8 8c ff ff ff callq 4012b8 <fun7> 40132c: 83 f8 07 cmp $0x7,%eax 40132f: 74 05 je 401336 <secret_phase+0x40> 401331: e8 53 03 00 00 callq 401689 <explode_bomb> 401336: bf 08 26 40 00 mov $0x402608,%edi 40133b: e8 00 f8 ff ff callq 400b40 <puts@plt> 401340: e8 e2 04 00 00 callq 401827 <phase_defused> 401345: 5b pop %rbx 401346: c3 retq 401347: 66 0f 1f 84 00 00 00 nopw 0x0(%rax,%rax,1) 40134e: 00 00
0000000000401350 <sig_handler>: 401350: 48 83 ec 08 sub $0x8,%rsp 401354: bf c0 26 40 00 mov $0x4026c0,%edi 401359: e8 e2 f7 ff ff callq 400b40 <puts@plt> 40135e: bf 03 00 00 00 mov $0x3,%edi 401363: e8 38 f9 ff ff callq 400ca0 <sleep@plt> 401368: bf 51 28 40 00 mov $0x402851,%edi 40136d: b8 00 00 00 00 mov $0x0,%eax 401372: e8 e9 f7 ff ff callq 400b60 <printf@plt> 401377: 48 8b 3d 02 34 20 00 mov 0x203402(%rip),%rdi # 604780 <__TMC_END__> 40137e: e8 9d f8 ff ff callq 400c20 <fflush@plt> 401383: bf 01 00 00 00 mov $0x1,%edi 401388: e8 13 f9 ff ff callq 400ca0 <sleep@plt> 40138d: bf 59 28 40 00 mov $0x402859,%edi 401392: e8 a9 f7 ff ff callq 400b40 <puts@plt> 401397: bf 10 00 00 00 mov $0x10,%edi 40139c: e8 df f8 ff ff callq 400c80 <exit@plt>
00000000004013a1 <invalid_phase>: 4013a1: 48 83 ec 08 sub $0x8,%rsp 4013a5: 48 89 fe mov %rdi,%rsi 4013a8: bf 61 28 40 00 mov $0x402861,%edi 4013ad: b8 00 00 00 00 mov $0x0,%eax 4013b2: e8 a9 f7 ff ff callq 400b60 <printf@plt> 4013b7: bf 08 00 00 00 mov $0x8,%edi 4013bc: e8 bf f8 ff ff callq 400c80 <exit@plt>
00000000004013c1 <string_length>: 4013c1: 80 3f 00 cmpb $0x0,(%rdi) 4013c4: 74 12 je 4013d8 <string_length+0x17> 4013c6: 48 89 fa mov %rdi,%rdx 4013c9: 48 83 c2 01 add $0x1,%rdx 4013cd: 89 d0 mov %edx,%eax 4013cf: 29 f8 sub %edi,%eax 4013d1: 80 3a 00 cmpb $0x0,(%rdx) 4013d4: 75 f3 jne 4013c9 <string_length+0x8> 4013d6: f3 c3 repz retq 4013d8: b8 00 00 00 00 mov $0x0,%eax 4013dd: c3 retq
00000000004013de <strings_not_equal>: 4013de: 41 54 push %r12 4013e0: 55 push %rbp 4013e1: 53 push %rbx 4013e2: 48 89 fb mov %rdi,%rbx 4013e5: 48 89 f5 mov %rsi,%rbp 4013e8: e8 d4 ff ff ff callq 4013c1 <string_length> 4013ed: 41 89 c4 mov %eax,%r12d 4013f0: 48 89 ef mov %rbp,%rdi 4013f3: e8 c9 ff ff ff callq 4013c1 <string_length> 4013f8: ba 01 00 00 00 mov $0x1,%edx 4013fd: 41 39 c4 cmp %eax,%r12d 401400: 75 3e jne 401440 <strings_not_equal+0x62> 401402: 0f b6 03 movzbl (%rbx),%eax 401405: 84 c0 test %al,%al 401407: 74 24 je 40142d <strings_not_equal+0x4f> 401409: 3a 45 00 cmp 0x0(%rbp),%al 40140c: 74 09 je 401417 <strings_not_equal+0x39> 40140e: 66 90 xchg %ax,%ax 401410: eb 22 jmp 401434 <strings_not_equal+0x56> 401412: 3a 45 00 cmp 0x0(%rbp),%al 401415: 75 24 jne 40143b <strings_not_equal+0x5d> 401417: 48 83 c3 01 add $0x1,%rbx 40141b: 48 83 c5 01 add $0x1,%rbp 40141f: 0f b6 03 movzbl (%rbx),%eax 401422: 84 c0 test %al,%al 401424: 75 ec jne 401412 <strings_not_equal+0x34> 401426: ba 00 00 00 00 mov $0x0,%edx 40142b: eb 13 jmp 401440 <strings_not_equal+0x62> 40142d: ba 00 00 00 00 mov $0x0,%edx 401432: eb 0c jmp 401440 <strings_not_equal+0x62> 401434: ba 01 00 00 00 mov $0x1,%edx 401439: eb 05 jmp 401440 <strings_not_equal+0x62> 40143b: ba 01 00 00 00 mov $0x1,%edx 401440: 89 d0 mov %edx,%eax 401442: 5b pop %rbx 401443: 5d pop %rbp 401444: 41 5c pop %r12 401446: c3 retq
0000000000401447 <initialize_bomb>: 401447: 53 push %rbx 401448: 48 81 ec 40 20 00 00 sub $0x2040,%rsp 40144f: be 50 13 40 00 mov $0x401350,%esi 401454: bf 02 00 00 00 mov $0x2,%edi 401459: e8 62 f7 ff ff callq 400bc0 <signal@plt> 40145e: be 40 00 00 00 mov $0x40,%esi 401463: 48 8d bc 24 00 20 00 lea 0x2000(%rsp),%rdi 40146a: 00 40146b: e8 f0 f7 ff ff callq 400c60 <gethostname@plt> 401470: 85 c0 test %eax,%eax 401472: 75 13 jne 401487 <initialize_bomb+0x40> 401474: 48 8b 3d 05 2f 20 00 mov 0x202f05(%rip),%rdi # 604380 <host_table> 40147b: bb 88 43 60 00 mov $0x604388,%ebx 401480: 48 85 ff test %rdi,%rdi 401483: 75 16 jne 40149b <initialize_bomb+0x54> 401485: eb 32 jmp 4014b9 <initialize_bomb+0x72> 401487: bf f8 26 40 00 mov $0x4026f8,%edi 40148c: e8 af f6 ff ff callq 400b40 <puts@plt> 401491: bf 08 00 00 00 mov $0x8,%edi 401496: e8 e5 f7 ff ff callq 400c80 <exit@plt> 40149b: 48 8d b4 24 00 20 00 lea 0x2000(%rsp),%rsi 4014a2: 00 4014a3: e8 68 f6 ff ff callq 400b10 <strcasecmp@plt> 4014a8: 85 c0 test %eax,%eax 4014aa: 74 0d je 4014b9 <initialize_bomb+0x72> 4014ac: 48 83 c3 08 add $0x8,%rbx 4014b0: 48 8b 7b f8 mov -0x8(%rbx),%rdi 4014b4: 48 85 ff test %rdi,%rdi 4014b7: 75 e2 jne 40149b <initialize_bomb+0x54> 4014b9: 48 89 e7 mov %rsp,%rdi 4014bc: e8 1d 0d 00 00 callq 4021de <init_driver> 4014c1: 85 c0 test %eax,%eax 4014c3: 79 1c jns 4014e1 <initialize_bomb+0x9a> 4014c5: 48 89 e6 mov %rsp,%rsi 4014c8: bf 72 28 40 00 mov $0x402872,%edi 4014cd: b8 00 00 00 00 mov $0x0,%eax 4014d2: e8 89 f6 ff ff callq 400b60 <printf@plt> 4014d7: bf 08 00 00 00 mov $0x8,%edi 4014dc: e8 9f f7 ff ff callq 400c80 <exit@plt> 4014e1: 48 81 c4 40 20 00 00 add $0x2040,%rsp 4014e8: 5b pop %rbx 4014e9: c3 retq
00000000004014ea <initialize_bomb_solve>: 4014ea: f3 c3 repz retq
00000000004014ec <blank_line>: 4014ec: 55 push %rbp 4014ed: 53 push %rbx 4014ee: 48 83 ec 08 sub $0x8,%rsp 4014f2: 48 89 fb mov %rdi,%rbx 4014f5: eb 17 jmp 40150e <blank_line+0x22> 4014f7: e8 b4 f7 ff ff callq 400cb0 <__ctype_b_loc@plt> 4014fc: 48 83 c3 01 add $0x1,%rbx 401500: 48 0f be ed movsbq %bpl,%rbp 401504: 48 8b 00 mov (%rax),%rax 401507: f6 44 68 01 20 testb $0x20,0x1(%rax,%rbp,2) 40150c: 74 0f je 40151d <blank_line+0x31> 40150e: 0f b6 2b movzbl (%rbx),%ebp 401511: 40 84 ed test %bpl,%bpl 401514: 75 e1 jne 4014f7 <blank_line+0xb> 401516: b8 01 00 00 00 mov $0x1,%eax 40151b: eb 05 jmp 401522 <blank_line+0x36> 40151d: b8 00 00 00 00 mov $0x0,%eax 401522: 48 83 c4 08 add $0x8,%rsp 401526: 5b pop %rbx 401527: 5d pop %rbp 401528: c3 retq
0000000000401529 <skip>: 401529: 53 push %rbx 40152a: 48 63 05 6b 32 20 00 movslq 0x20326b(%rip),%rax # 60479c <num_input_strings> 401531: 48 8d 3c 80 lea (%rax,%rax,4),%rdi 401535: 48 c1 e7 04 shl $0x4,%rdi 401539: 48 81 c7 c0 47 60 00 add $0x6047c0,%rdi 401540: 48 8b 15 59 32 20 00 mov 0x203259(%rip),%rdx # 6047a0 <infile> 401547: be 50 00 00 00 mov $0x50,%esi 40154c: e8 5f f6 ff ff callq 400bb0 <fgets@plt> 401551: 48 89 c3 mov %rax,%rbx 401554: 48 85 c0 test %rax,%rax 401557: 74 0c je 401565 <skip+0x3c> 401559: 48 89 c7 mov %rax,%rdi 40155c: e8 8b ff ff ff callq 4014ec <blank_line> 401561: 85 c0 test %eax,%eax 401563: 75 c5 jne 40152a <skip+0x1> 401565: 48 89 d8 mov %rbx,%rax 401568: 5b pop %rbx 401569: c3 retq
000000000040156a <send_msg>: 40156a: 53 push %rbx 40156b: 48 81 ec 20 40 00 00 sub $0x4020,%rsp 401572: 89 fb mov %edi,%ebx 401574: bf 9d 28 40 00 mov $0x40289d,%edi 401579: e8 82 f5 ff ff callq 400b00 <getenv@plt> 40157e: 48 89 c2 mov %rax,%rdx 401581: 48 b8 6e 6f 63 67 75 movabs $0x7265737567636f6e,%rax 401588: 73 65 72 40158b: 48 89 44 24 10 mov %rax,0x10(%rsp) 401590: 66 c7 44 24 18 69 64 movw $0x6469,0x18(%rsp) 401597: c6 44 24 1a 00 movb $0x0,0x1a(%rsp) 40159c: 48 8d 44 24 10 lea 0x10(%rsp),%rax 4015a1: 48 85 d2 test %rdx,%rdx 4015a4: 48 0f 44 d0 cmove %rax,%rdx 4015a8: 44 8b 0d ed 31 20 00 mov 0x2031ed(%rip),%r9d # 60479c <num_input_strings> 4015af: 41 8d 41 ff lea -0x1(%r9),%eax 4015b3: 48 98 cltq 4015b5: 4c 8d 14 80 lea (%rax,%rax,4),%r10 4015b9: 49 c1 e2 04 shl $0x4,%r10 4015bd: 49 81 c2 c0 47 60 00 add $0x6047c0,%r10 4015c4: 48 c7 c6 ff ff ff ff mov $0xffffffffffffffff,%rsi 4015cb: 4c 89 d7 mov %r10,%rdi 4015ce: b8 00 00 00 00 mov $0x0,%eax 4015d3: 48 89 f1 mov %rsi,%rcx 4015d6: f2 ae repnz scas %es:(%rdi),%al 4015d8: 48 f7 d1 not %rcx 4015db: 49 89 cb mov %rcx,%r11 4015de: 48 89 d7 mov %rdx,%rdi 4015e1: 48 89 f1 mov %rsi,%rcx 4015e4: f2 ae repnz scas %es:(%rdi),%al 4015e6: 48 89 ce mov %rcx,%rsi 4015e9: 48 f7 d6 not %rsi 4015ec: 49 8d 44 33 62 lea 0x62(%r11,%rsi,1),%rax 4015f1: 48 3d 00 20 00 00 cmp $0x2000,%rax 4015f7: 76 19 jbe 401612 <send_msg+0xa8> 4015f9: bf 30 27 40 00 mov $0x402730,%edi 4015fe: b8 00 00 00 00 mov $0x0,%eax 401603: e8 58 f5 ff ff callq 400b60 <printf@plt> 401608: bf 08 00 00 00 mov $0x8,%edi 40160d: e8 6e f6 ff ff callq 400c80 <exit@plt> 401612: 85 db test %ebx,%ebx 401614: b8 8c 28 40 00 mov $0x40288c,%eax 401619: 41 b8 94 28 40 00 mov $0x402894,%r8d 40161f: 4c 0f 45 c0 cmovne %rax,%r8 401623: 4c 89 14 24 mov %r10,(%rsp) 401627: 48 89 d1 mov %rdx,%rcx 40162a: 8b 15 44 2d 20 00 mov 0x202d44(%rip),%edx # 604374 <bomb_id> 401630: be a6 28 40 00 mov $0x4028a6,%esi 401635: 48 8d bc 24 20 20 00 lea 0x2020(%rsp),%rdi 40163c: 00 40163d: b8 00 00 00 00 mov $0x0,%eax 401642: e8 29 f6 ff ff callq 400c70 <sprintf@plt> 401647: 4c 8d 44 24 20 lea 0x20(%rsp),%r8 40164c: b9 00 00 00 00 mov $0x0,%ecx 401651: 48 8d 94 24 20 20 00 lea 0x2020(%rsp),%rdx 401658: 00 401659: be 50 43 60 00 mov $0x604350,%esi 40165e: bf 65 43 60 00 mov $0x604365,%edi 401663: e8 14 0d 00 00 callq 40237c <driver_post> 401668: 85 c0 test %eax,%eax 40166a: 79 14 jns 401680 <send_msg+0x116> 40166c: 48 8d 7c 24 20 lea 0x20(%rsp),%rdi 401671: e8 ca f4 ff ff callq 400b40 <puts@plt> 401676: bf 00 00 00 00 mov $0x0,%edi 40167b: e8 00 f6 ff ff callq 400c80 <exit@plt> 401680: 48 81 c4 20 40 00 00 add $0x4020,%rsp 401687: 5b pop %rbx 401688: c3 retq
0000000000401689 <explode_bomb>: 401689: 48 83 ec 08 sub $0x8,%rsp 40168d: bf b5 28 40 00 mov $0x4028b5,%edi 401692: e8 a9 f4 ff ff callq 400b40 <puts@plt> 401697: bf be 28 40 00 mov $0x4028be,%edi 40169c: e8 9f f4 ff ff callq 400b40 <puts@plt> 4016a1: bf 00 00 00 00 mov $0x0,%edi 4016a6: e8 bf fe ff ff callq 40156a <send_msg> 4016ab: bf 58 27 40 00 mov $0x402758,%edi 4016b0: e8 8b f4 ff ff callq 400b40 <puts@plt> 4016b5: bf 08 00 00 00 mov $0x8,%edi 4016ba: e8 c1 f5 ff ff callq 400c80 <exit@plt>
00000000004016bf <read_six_numbers>: 4016bf: 48 83 ec 18 sub $0x18,%rsp 4016c3: 48 89 f2 mov %rsi,%rdx 4016c6: 48 8d 4e 04 lea 0x4(%rsi),%rcx 4016ca: 48 8d 46 14 lea 0x14(%rsi),%rax 4016ce: 48 89 44 24 08 mov %rax,0x8(%rsp) 4016d3: 48 8d 46 10 lea 0x10(%rsi),%rax 4016d7: 48 89 04 24 mov %rax,(%rsp) 4016db: 4c 8d 4e 0c lea 0xc(%rsi),%r9 4016df: 4c 8d 46 08 lea 0x8(%rsi),%r8 4016e3: be d5 28 40 00 mov $0x4028d5,%esi 4016e8: b8 00 00 00 00 mov $0x0,%eax 4016ed: e8 3e f5 ff ff callq 400c30 <__isoc99_sscanf@plt> 4016f2: 83 f8 05 cmp $0x5,%eax 4016f5: 7f 05 jg 4016fc <read_six_numbers+0x3d> 4016f7: e8 8d ff ff ff callq 401689 <explode_bomb> 4016fc: 48 83 c4 18 add $0x18,%rsp 401700: c3 retq
0000000000401701 <read_line>: 401701: 48 83 ec 08 sub $0x8,%rsp 401705: b8 00 00 00 00 mov $0x0,%eax 40170a: e8 1a fe ff ff callq 401529 <skip> 40170f: 48 85 c0 test %rax,%rax 401712: 75 6e jne 401782 <read_line+0x81> 401714: 48 8b 05 6d 30 20 00 mov 0x20306d(%rip),%rax # 604788 <stdin@@GLIBC_2.2.5> 40171b: 48 39 05 7e 30 20 00 cmp %rax,0x20307e(%rip) # 6047a0 <infile> 401722: 75 14 jne 401738 <read_line+0x37> 401724: bf e7 28 40 00 mov $0x4028e7,%edi 401729: e8 12 f4 ff ff callq 400b40 <puts@plt> 40172e: bf 08 00 00 00 mov $0x8,%edi 401733: e8 48 f5 ff ff callq 400c80 <exit@plt> 401738: bf 05 29 40 00 mov $0x402905,%edi 40173d: e8 be f3 ff ff callq 400b00 <getenv@plt> 401742: 48 85 c0 test %rax,%rax 401745: 74 0a je 401751 <read_line+0x50> 401747: bf 00 00 00 00 mov $0x0,%edi 40174c: e8 2f f5 ff ff callq 400c80 <exit@plt> 401751: 48 8b 05 30 30 20 00 mov 0x203030(%rip),%rax # 604788 <stdin@@GLIBC_2.2.5> 401758: 48 89 05 41 30 20 00 mov %rax,0x203041(%rip) # 6047a0 <infile> 40175f: b8 00 00 00 00 mov $0x0,%eax 401764: e8 c0 fd ff ff callq 401529 <skip> 401769: 48 85 c0 test %rax,%rax 40176c: 75 14 jne 401782 <read_line+0x81> 40176e: bf e7 28 40 00 mov $0x4028e7,%edi 401773: e8 c8 f3 ff ff callq 400b40 <puts@plt> 401778: bf 00 00 00 00 mov $0x0,%edi 40177d: e8 fe f4 ff ff callq 400c80 <exit@plt> 401782: 8b 15 14 30 20 00 mov 0x203014(%rip),%edx # 60479c <num_input_strings> 401788: 48 63 c2 movslq %edx,%rax 40178b: 48 8d 34 80 lea (%rax,%rax,4),%rsi 40178f: 48 c1 e6 04 shl $0x4,%rsi 401793: 48 81 c6 c0 47 60 00 add $0x6047c0,%rsi 40179a: 48 89 f7 mov %rsi,%rdi 40179d: b8 00 00 00 00 mov $0x0,%eax 4017a2: 48 c7 c1 ff ff ff ff mov $0xffffffffffffffff,%rcx 4017a9: f2 ae repnz scas %es:(%rdi),%al 4017ab: 48 f7 d1 not %rcx 4017ae: 48 83 e9 01 sub $0x1,%rcx 4017b2: 83 f9 4e cmp $0x4e,%ecx 4017b5: 7e 46 jle 4017fd <read_line+0xfc> 4017b7: bf 10 29 40 00 mov $0x402910,%edi 4017bc: e8 7f f3 ff ff callq 400b40 <puts@plt> 4017c1: 8b 05 d5 2f 20 00 mov 0x202fd5(%rip),%eax # 60479c <num_input_strings> 4017c7: 8d 50 01 lea 0x1(%rax),%edx 4017ca: 89 15 cc 2f 20 00 mov %edx,0x202fcc(%rip) # 60479c <num_input_strings> 4017d0: 48 98 cltq 4017d2: 48 6b c0 50 imul $0x50,%rax,%rax 4017d6: 48 bf 2a 2a 2a 74 72 movabs $0x636e7572742a2a2a,%rdi 4017dd: 75 6e 63 4017e0: 48 89 b8 c0 47 60 00 mov %rdi,0x6047c0(%rax) 4017e7: 48 bf 61 74 65 64 2a movabs $0x2a2a2a64657461,%rdi 4017ee: 2a 2a 00 4017f1: 48 89 b8 c8 47 60 00 mov %rdi,0x6047c8(%rax) 4017f8: e8 8c fe ff ff callq 401689 <explode_bomb> 4017fd: 83 e9 01 sub $0x1,%ecx 401800: 48 63 c9 movslq %ecx,%rcx 401803: 48 63 c2 movslq %edx,%rax 401806: 48 8d 04 80 lea (%rax,%rax,4),%rax 40180a: 48 c1 e0 04 shl $0x4,%rax 40180e: c6 84 01 c0 47 60 00 movb $0x0,0x6047c0(%rcx,%rax,1) 401815: 00 401816: 83 c2 01 add $0x1,%edx 401819: 89 15 7d 2f 20 00 mov %edx,0x202f7d(%rip) # 60479c <num_input_strings> 40181f: 48 89 f0 mov %rsi,%rax 401822: 48 83 c4 08 add $0x8,%rsp 401826: c3 retq
0000000000401827 <phase_defused>: 401827: 48 83 ec 68 sub $0x68,%rsp 40182b: bf 01 00 00 00 mov $0x1,%edi 401830: e8 35 fd ff ff callq 40156a <send_msg> 401835: 83 3d 60 2f 20 00 06 cmpl $0x6,0x202f60(%rip) # 60479c <num_input_strings> 40183c: 75 6d jne 4018ab <phase_defused+0x84> 40183e: 4c 8d 44 24 10 lea 0x10(%rsp),%r8 401843: 48 8d 4c 24 08 lea 0x8(%rsp),%rcx 401848: 48 8d 54 24 0c lea 0xc(%rsp),%rdx 40184d: be 2b 29 40 00 mov $0x40292b,%esi 401852: bf b0 48 60 00 mov $0x6048b0,%edi 401857: b8 00 00 00 00 mov $0x0,%eax 40185c: e8 cf f3 ff ff callq 400c30 <__isoc99_sscanf@plt> 401861: 83 f8 03 cmp $0x3,%eax 401864: 75 31 jne 401897 <phase_defused+0x70> 401866: be 34 29 40 00 mov $0x402934,%esi 40186b: 48 8d 7c 24 10 lea 0x10(%rsp),%rdi 401870: e8 69 fb ff ff callq 4013de <strings_not_equal> 401875: 85 c0 test %eax,%eax 401877: 75 1e jne 401897 <phase_defused+0x70> 401879: bf 80 27 40 00 mov $0x402780,%edi 40187e: e8 bd f2 ff ff callq 400b40 <puts@plt> 401883: bf a8 27 40 00 mov $0x4027a8,%edi 401888: e8 b3 f2 ff ff callq 400b40 <puts@plt> 40188d: b8 00 00 00 00 mov $0x0,%eax 401892: e8 5f fa ff ff callq 4012f6 <secret_phase> 401897: bf e0 27 40 00 mov $0x4027e0,%edi 40189c: e8 9f f2 ff ff callq 400b40 <puts@plt> 4018a1: bf 10 28 40 00 mov $0x402810,%edi 4018a6: e8 95 f2 ff ff callq 400b40 <puts@plt> 4018ab: 48 83 c4 68 add $0x68,%rsp 4018af: c3 retq
00000000004018b0 <sigalrm_handler>: 4018b0: 48 83 ec 08 sub $0x8,%rsp 4018b4: ba 00 00 00 00 mov $0x0,%edx 4018b9: be a8 29 40 00 mov $0x4029a8,%esi 4018be: 48 8b 3d cb 2e 20 00 mov 0x202ecb(%rip),%rdi # 604790 <stderr@@GLIBC_2.2.5> 4018c5: b8 00 00 00 00 mov $0x0,%eax 4018ca: e8 11 f3 ff ff callq 400be0 <fprintf@plt> 4018cf: bf 01 00 00 00 mov $0x1,%edi 4018d4: e8 a7 f3 ff ff callq 400c80 <exit@plt>
00000000004018d9 <rio_readlineb>: 4018d9: 41 57 push %r15 4018db: 41 56 push %r14 4018dd: 41 55 push %r13 4018df: 41 54 push %r12 4018e1: 55 push %rbp 4018e2: 53 push %rbx 4018e3: 48 83 ec 38 sub $0x38,%rsp 4018e7: 49 89 f6 mov %rsi,%r14 4018ea: 48 89 54 24 18 mov %rdx,0x18(%rsp) 4018ef: 48 83 fa 01 cmp $0x1,%rdx 4018f3: 0f 86 c2 00 00 00 jbe 4019bb <rio_readlineb+0xe2> 4018f9: 48 89 fb mov %rdi,%rbx 4018fc: 41 bd 01 00 00 00 mov $0x1,%r13d 401902: 4c 8d 67 10 lea 0x10(%rdi),%r12 401906: eb 2e jmp 401936 <rio_readlineb+0x5d> 401908: ba 00 20 00 00 mov $0x2000,%edx 40190d: 4c 89 e6 mov %r12,%rsi 401910: 8b 3b mov (%rbx),%edi 401912: e8 79 f2 ff ff callq 400b90 <read@plt> 401917: 89 43 04 mov %eax,0x4(%rbx) 40191a: 85 c0 test %eax,%eax 40191c: 79 0f jns 40192d <rio_readlineb+0x54> 40191e: e8 fd f1 ff ff callq 400b20 <__errno_location@plt> 401923: 83 38 04 cmpl $0x4,(%rax) 401926: 74 0e je 401936 <rio_readlineb+0x5d> 401928: e9 9d 00 00 00 jmpq 4019ca <rio_readlineb+0xf1> 40192d: 85 c0 test %eax,%eax 40192f: 90 nop 401930: 74 6c je 40199e <rio_readlineb+0xc5> 401932: 4c 89 63 08 mov %r12,0x8(%rbx) 401936: 8b 6b 04 mov 0x4(%rbx),%ebp 401939: 85 ed test %ebp,%ebp 40193b: 7e cb jle 401908 <rio_readlineb+0x2f> 40193d: 85 ed test %ebp,%ebp 40193f: 41 0f 95 c7 setne %r15b 401943: 41 0f b6 c7 movzbl %r15b,%eax 401947: 89 44 24 0c mov %eax,0xc(%rsp) 40194b: 45 0f b6 ff movzbl %r15b,%r15d 40194f: 48 8b 4b 08 mov 0x8(%rbx),%rcx 401953: 4c 89 fa mov %r15,%rdx 401956: 48 89 4c 24 10 mov %rcx,0x10(%rsp) 40195b: 48 89 ce mov %rcx,%rsi 40195e: 48 8d 7c 24 2f lea 0x2f(%rsp),%rdi 401963: e8 a8 f2 ff ff callq 400c10 <memcpy@plt> 401968: 4c 03 7c 24 10 add 0x10(%rsp),%r15 40196d: 4c 89 7b 08 mov %r15,0x8(%rbx) 401971: 8b 44 24 0c mov 0xc(%rsp),%eax 401975: 29 c5 sub %eax,%ebp 401977: 89 6b 04 mov %ebp,0x4(%rbx) 40197a: 83 f8 01 cmp $0x1,%eax 40197d: 75 13 jne 401992 <rio_readlineb+0xb9> 40197f: 49 83 c6 01 add $0x1,%r14 401983: 0f b6 44 24 2f movzbl 0x2f(%rsp),%eax 401988: 41 88 46 ff mov %al,-0x1(%r14) 40198c: 3c 0a cmp $0xa,%al 40198e: 75 18 jne 4019a8 <rio_readlineb+0xcf> 401990: eb 2f jmp 4019c1 <rio_readlineb+0xe8> 401992: 83 7c 24 0c 00 cmpl $0x0,0xc(%rsp) 401997: 75 3a jne 4019d3 <rio_readlineb+0xfa> 401999: 44 89 e8 mov %r13d,%eax 40199c: eb 03 jmp 4019a1 <rio_readlineb+0xc8> 40199e: 44 89 e8 mov %r13d,%eax 4019a1: 83 f8 01 cmp $0x1,%eax 4019a4: 75 1b jne 4019c1 <rio_readlineb+0xe8> 4019a6: eb 34 jmp 4019dc <rio_readlineb+0x103> 4019a8: 41 83 c5 01 add $0x1,%r13d 4019ac: 49 63 c5 movslq %r13d,%rax 4019af: 48 3b 44 24 18 cmp 0x18(%rsp),%rax 4019b4: 73 0b jae 4019c1 <rio_readlineb+0xe8> 4019b6: e9 7b ff ff ff jmpq 401936 <rio_readlineb+0x5d> 4019bb: 41 bd 01 00 00 00 mov $0x1,%r13d 4019c1: 41 c6 06 00 movb $0x0,(%r14) 4019c5: 49 63 c5 movslq %r13d,%rax 4019c8: eb 17 jmp 4019e1 <rio_readlineb+0x108> 4019ca: 48 c7 c0 ff ff ff ff mov $0xffffffffffffffff,%rax 4019d1: eb 0e jmp 4019e1 <rio_readlineb+0x108> 4019d3: 48 c7 c0 ff ff ff ff mov $0xffffffffffffffff,%rax 4019da: eb 05 jmp 4019e1 <rio_readlineb+0x108> 4019dc: b8 00 00 00 00 mov $0x0,%eax 4019e1: 48 83 c4 38 add $0x38,%rsp 4019e5: 5b pop %rbx 4019e6: 5d pop %rbp 4019e7: 41 5c pop %r12 4019e9: 41 5d pop %r13 4019eb: 41 5e pop %r14 4019ed: 41 5f pop %r15 4019ef: c3 retq
00000000004019f0 <submitr>: 4019f0: 41 57 push %r15 4019f2: 41 56 push %r14 4019f4: 41 55 push %r13 4019f6: 41 54 push %r12 4019f8: 55 push %rbp 4019f9: 53 push %rbx 4019fa: 48 81 ec 68 a0 00 00 sub $0xa068,%rsp 401a01: 48 89 fd mov %rdi,%rbp 401a04: 41 89 f5 mov %esi,%r13d 401a07: 48 89 54 24 08 mov %rdx,0x8(%rsp) 401a0c: 48 89 4c 24 10 mov %rcx,0x10(%rsp) 401a11: 4c 89 44 24 18 mov %r8,0x18(%rsp) 401a16: 4d 89 cf mov %r9,%r15 401a19: 48 8b 9c 24 a0 a0 00 mov 0xa0a0(%rsp),%rbx 401a20: 00 401a21: 4c 8b b4 24 a8 a0 00 mov 0xa0a8(%rsp),%r14 401a28: 00 401a29: c7 84 24 3c 20 00 00 movl $0x0,0x203c(%rsp) 401a30: 00 00 00 00 401a34: ba 00 00 00 00 mov $0x0,%edx 401a39: be 01 00 00 00 mov $0x1,%esi 401a3e: bf 02 00 00 00 mov $0x2,%edi 401a43: e8 78 f2 ff ff callq 400cc0 <socket@plt> 401a48: 41 89 c4 mov %eax,%r12d 401a4b: 85 c0 test %eax,%eax 401a4d: 79 50 jns 401a9f <submitr+0xaf> 401a4f: 48 b8 45 72 72 6f 72 movabs $0x43203a726f727245,%rax 401a56: 3a 20 43 401a59: 49 89 06 mov %rax,(%r14) 401a5c: 48 b8 6c 69 65 6e 74 movabs $0x6e7520746e65696c,%rax 401a63: 20 75 6e 401a66: 49 89 46 08 mov %rax,0x8(%r14) 401a6a: 48 b8 61 62 6c 65 20 movabs $0x206f7420656c6261,%rax 401a71: 74 6f 20 401a74: 49 89 46 10 mov %rax,0x10(%r14) 401a78: 48 b8 63 72 65 61 74 movabs $0x7320657461657263,%rax 401a7f: 65 20 73 401a82: 49 89 46 18 mov %rax,0x18(%r14) 401a86: 41 c7 46 20 6f 63 6b movl $0x656b636f,0x20(%r14) 401a8d: 65 401a8e: 66 41 c7 46 24 74 00 movw $0x74,0x24(%r14) 401a95: b8 ff ff ff ff mov $0xffffffff,%eax 401a9a: e9 06 07 00 00 jmpq 4021a5 <submitr+0x7b5> 401a9f: 48 89 ef mov %rbp,%rdi 401aa2: e8 29 f1 ff ff callq 400bd0 <gethostbyname@plt> 401aa7: 48 85 c0 test %rax,%rax 401aaa: 75 6b jne 401b17 <submitr+0x127> 401aac: 48 b8 45 72 72 6f 72 movabs $0x44203a726f727245,%rax 401ab3: 3a 20 44 401ab6: 49 89 06 mov %rax,(%r14) 401ab9: 48 b8 4e 53 20 69 73 movabs $0x6e7520736920534e,%rax 401ac0: 20 75 6e 401ac3: 49 89 46 08 mov %rax,0x8(%r14) 401ac7: 48 b8 61 62 6c 65 20 movabs $0x206f7420656c6261,%rax 401ace: 74 6f 20 401ad1: 49 89 46 10 mov %rax,0x10(%r14) 401ad5: 48 b8 72 65 73 6f 6c movabs $0x2065766c6f736572,%rax 401adc: 76 65 20 401adf: 49 89 46 18 mov %rax,0x18(%r14) 401ae3: 48 b8 73 65 72 76 65 movabs $0x6120726576726573,%rax 401aea: 72 20 61 401aed: 49 89 46 20 mov %rax,0x20(%r14) 401af1: 41 c7 46 28 64 64 72 movl $0x65726464,0x28(%r14) 401af8: 65 401af9: 66 41 c7 46 2c 73 73 movw $0x7373,0x2c(%r14) 401b00: 41 c6 46 2e 00 movb $0x0,0x2e(%r14) 401b05: 44 89 e7 mov %r12d,%edi 401b08: e8 73 f0 ff ff callq 400b80 <close@plt> 401b0d: b8 ff ff ff ff mov $0xffffffff,%eax 401b12: e9 8e 06 00 00 jmpq 4021a5 <submitr+0x7b5> 401b17: 48 c7 84 24 50 a0 00 movq $0x0,0xa050(%rsp) 401b1e: 00 00 00 00 00 401b23: 48 c7 84 24 58 a0 00 movq $0x0,0xa058(%rsp) 401b2a: 00 00 00 00 00 401b2f: 66 c7 84 24 50 a0 00 movw $0x2,0xa050(%rsp) 401b36: 00 02 00 401b39: 48 63 50 14 movslq 0x14(%rax),%rdx 401b3d: 48 8d b4 24 54 a0 00 lea 0xa054(%rsp),%rsi 401b44: 00 401b45: 48 8b 40 18 mov 0x18(%rax),%rax 401b49: 48 8b 38 mov (%rax),%rdi 401b4c: e8 ef f0 ff ff callq 400c40 <bcopy@plt> 401b51: 66 41 c1 cd 08 ror $0x8,%r13w 401b56: 66 44 89 ac 24 52 a0 mov %r13w,0xa052(%rsp) 401b5d: 00 00 401b5f: ba 10 00 00 00 mov $0x10,%edx 401b64: 48 8d b4 24 50 a0 00 lea 0xa050(%rsp),%rsi 401b6b: 00 401b6c: 44 89 e7 mov %r12d,%edi 401b6f: e8 1c f1 ff ff callq 400c90 <connect@plt> 401b74: 85 c0 test %eax,%eax 401b76: 79 5d jns 401bd5 <submitr+0x1e5> 401b78: 48 b8 45 72 72 6f 72 movabs $0x55203a726f727245,%rax 401b7f: 3a 20 55 401b82: 49 89 06 mov %rax,(%r14) 401b85: 48 b8 6e 61 62 6c 65 movabs $0x6f7420656c62616e,%rax 401b8c: 20 74 6f 401b8f: 49 89 46 08 mov %rax,0x8(%r14) 401b93: 48 b8 20 63 6f 6e 6e movabs $0x7463656e6e6f6320,%rax 401b9a: 65 63 74 401b9d: 49 89 46 10 mov %rax,0x10(%r14) 401ba1: 48 b8 20 74 6f 20 74 movabs $0x20656874206f7420,%rax 401ba8: 68 65 20 401bab: 49 89 46 18 mov %rax,0x18(%r14) 401baf: 41 c7 46 20 73 65 72 movl $0x76726573,0x20(%r14) 401bb6: 76 401bb7: 66 41 c7 46 24 65 72 movw $0x7265,0x24(%r14) 401bbe: 41 c6 46 26 00 movb $0x0,0x26(%r14) 401bc3: 44 89 e7 mov %r12d,%edi 401bc6: e8 b5 ef ff ff callq 400b80 <close@plt> 401bcb: b8 ff ff ff ff mov $0xffffffff,%eax 401bd0: e9 d0 05 00 00 jmpq 4021a5 <submitr+0x7b5> 401bd5: 48 c7 c2 ff ff ff ff mov $0xffffffffffffffff,%rdx 401bdc: 48 89 df mov %rbx,%rdi 401bdf: b8 00 00 00 00 mov $0x0,%eax 401be4: 48 89 d1 mov %rdx,%rcx 401be7: f2 ae repnz scas %es:(%rdi),%al 401be9: 48 f7 d1 not %rcx 401bec: 48 89 ce mov %rcx,%rsi 401bef: 48 8b 7c 24 08 mov 0x8(%rsp),%rdi 401bf4: 48 89 d1 mov %rdx,%rcx 401bf7: f2 ae repnz scas %es:(%rdi),%al 401bf9: 49 89 c8 mov %rcx,%r8 401bfc: 48 8b 7c 24 10 mov 0x10(%rsp),%rdi 401c01: 48 89 d1 mov %rdx,%rcx 401c04: f2 ae repnz scas %es:(%rdi),%al 401c06: 48 f7 d1 not %rcx 401c09: 49 89 c9 mov %rcx,%r9 401c0c: 4c 89 ff mov %r15,%rdi 401c0f: 48 89 d1 mov %rdx,%rcx 401c12: f2 ae repnz scas %es:(%rdi),%al 401c14: 4d 29 c1 sub %r8,%r9 401c17: 49 29 c9 sub %rcx,%r9 401c1a: 48 8d 44 76 fd lea -0x3(%rsi,%rsi,2),%rax 401c1f: 49 8d 44 01 7b lea 0x7b(%r9,%rax,1),%rax 401c24: 48 3d 00 20 00 00 cmp $0x2000,%rax 401c2a: 76 73 jbe 401c9f <submitr+0x2af> 401c2c: 48 b8 45 72 72 6f 72 movabs $0x52203a726f727245,%rax 401c33: 3a 20 52 401c36: 49 89 06 mov %rax,(%r14) 401c39: 48 b8 65 73 75 6c 74 movabs $0x747320746c757365,%rax 401c40: 20 73 74 401c43: 49 89 46 08 mov %rax,0x8(%r14) 401c47: 48 b8 72 69 6e 67 20 movabs $0x6f6f7420676e6972,%rax 401c4e: 74 6f 6f 401c51: 49 89 46 10 mov %rax,0x10(%r14) 401c55: 48 b8 20 6c 61 72 67 movabs $0x202e656772616c20,%rax 401c5c: 65 2e 20 401c5f: 49 89 46 18 mov %rax,0x18(%r14) 401c63: 48 b8 49 6e 63 72 65 movabs $0x6573616572636e49,%rax 401c6a: 61 73 65 401c6d: 49 89 46 20 mov %rax,0x20(%r14) 401c71: 48 b8 20 53 55 42 4d movabs $0x5254494d42555320,%rax 401c78: 49 54 52 401c7b: 49 89 46 28 mov %rax,0x28(%r14) 401c7f: 48 b8 5f 4d 41 58 42 movabs $0x46554258414d5f,%rax 401c86: 55 46 00 401c89: 49 89 46 30 mov %rax,0x30(%r14) 401c8d: 44 89 e7 mov %r12d,%edi 401c90: e8 eb ee ff ff callq 400b80 <close@plt> 401c95: b8 ff ff ff ff mov $0xffffffff,%eax 401c9a: e9 06 05 00 00 jmpq 4021a5 <submitr+0x7b5> 401c9f: 48 8d 94 24 40 40 00 lea 0x4040(%rsp),%rdx 401ca6: 00 401ca7: b9 00 04 00 00 mov $0x400,%ecx 401cac: b8 00 00 00 00 mov $0x0,%eax 401cb1: 48 89 d7 mov %rdx,%rdi 401cb4: f3 48 ab rep stos %rax,%es:(%rdi) 401cb7: 48 89 df mov %rbx,%rdi 401cba: 48 c7 c1 ff ff ff ff mov $0xffffffffffffffff,%rcx 401cc1: f2 ae repnz scas %es:(%rdi),%al 401cc3: 48 f7 d1 not %rcx 401cc6: 48 83 e9 01 sub $0x1,%rcx 401cca: 85 c9 test %ecx,%ecx 401ccc: 0f 84 d3 03 00 00 je 4020a5 <submitr+0x6b5> 401cd2: 8d 41 ff lea -0x1(%rcx),%eax 401cd5: 4c 8d 6c 03 01 lea 0x1(%rbx,%rax,1),%r13 401cda: 48 89 d5 mov %rdx,%rbp 401cdd: 0f b6 13 movzbl (%rbx),%edx 401ce0: 80 fa 2a cmp $0x2a,%dl 401ce3: 74 1f je 401d04 <submitr+0x314> 401ce5: 8d 42 d3 lea -0x2d(%rdx),%eax 401ce8: 3c 01 cmp $0x1,%al 401cea: 76 18 jbe 401d04 <submitr+0x314> 401cec: 80 fa 5f cmp $0x5f,%dl 401cef: 74 13 je 401d04 <submitr+0x314> 401cf1: 8d 42 d0 lea -0x30(%rdx),%eax 401cf4: 3c 09 cmp $0x9,%al 401cf6: 76 0c jbe 401d04 <submitr+0x314> 401cf8: 89 d0 mov %edx,%eax 401cfa: 83 e0 df and $0xffffffdf,%eax 401cfd: 83 e8 41 sub $0x41,%eax 401d00: 3c 19 cmp $0x19,%al 401d02: 77 09 ja 401d0d <submitr+0x31d> 401d04: 48 8d 45 01 lea 0x1(%rbp),%rax 401d08: 88 55 00 mov %dl,0x0(%rbp) 401d0b: eb 52 jmp 401d5f <submitr+0x36f> 401d0d: 80 fa 20 cmp $0x20,%dl 401d10: 75 0a jne 401d1c <submitr+0x32c> 401d12: 48 8d 45 01 lea 0x1(%rbp),%rax 401d16: c6 45 00 2b movb $0x2b,0x0(%rbp) 401d1a: eb 43 jmp 401d5f <submitr+0x36f> 401d1c: 8d 42 e0 lea -0x20(%rdx),%eax 401d1f: 3c 5f cmp $0x5f,%al 401d21: 76 09 jbe 401d2c <submitr+0x33c> 401d23: 80 fa 09 cmp $0x9,%dl 401d26: 0f 85 f1 03 00 00 jne 40211d <submitr+0x72d> 401d2c: 0f b6 d2 movzbl %dl,%edx 401d2f: be 78 2a 40 00 mov $0x402a78,%esi 401d34: 48 8d 7c 24 20 lea 0x20(%rsp),%rdi 401d39: b8 00 00 00 00 mov $0x0,%eax 401d3e: e8 2d ef ff ff callq 400c70 <sprintf@plt> 401d43: 0f b6 44 24 20 movzbl 0x20(%rsp),%eax 401d48: 88 45 00 mov %al,0x0(%rbp) 401d4b: 0f b6 44 24 21 movzbl 0x21(%rsp),%eax 401d50: 88 45 01 mov %al,0x1(%rbp) 401d53: 48 8d 45 03 lea 0x3(%rbp),%rax 401d57: 0f b6 54 24 22 movzbl 0x22(%rsp),%edx 401d5c: 88 55 02 mov %dl,0x2(%rbp) 401d5f: 48 83 c3 01 add $0x1,%rbx 401d63: 4c 39 eb cmp %r13,%rbx 401d66: 0f 84 39 03 00 00 je 4020a5 <submitr+0x6b5> 401d6c: 48 89 c5 mov %rax,%rbp 401d6f: e9 69 ff ff ff jmpq 401cdd <submitr+0x2ed> 401d74: 48 89 da mov %rbx,%rdx 401d77: 48 89 ee mov %rbp,%rsi 401d7a: 44 89 e7 mov %r12d,%edi 401d7d: e8 ce ed ff ff callq 400b50 <write@plt> 401d82: 48 85 c0 test %rax,%rax 401d85: 7f 10 jg 401d97 <submitr+0x3a7> 401d87: e8 94 ed ff ff callq 400b20 <__errno_location@plt> 401d8c: 83 38 04 cmpl $0x4,(%rax) 401d8f: 90 nop 401d90: 75 12 jne 401da4 <submitr+0x3b4> 401d92: b8 00 00 00 00 mov $0x0,%eax 401d97: 48 01 c5 add %rax,%rbp 401d9a: 48 29 c3 sub %rax,%rbx 401d9d: 75 d5 jne 401d74 <submitr+0x384> 401d9f: 4d 85 ed test %r13,%r13 401da2: 79 5f jns 401e03 <submitr+0x413> 401da4: 48 b8 45 72 72 6f 72 movabs $0x43203a726f727245,%rax 401dab: 3a 20 43 401dae: 49 89 06 mov %rax,(%r14) 401db1: 48 b8 6c 69 65 6e 74 movabs $0x6e7520746e65696c,%rax 401db8: 20 75 6e 401dbb: 49 89 46 08 mov %rax,0x8(%r14) 401dbf: 48 b8 61 62 6c 65 20 movabs $0x206f7420656c6261,%rax 401dc6: 74 6f 20 401dc9: 49 89 46 10 mov %rax,0x10(%r14) 401dcd: 48 b8 77 72 69 74 65 movabs $0x6f74206574697277,%rax 401dd4: 20 74 6f 401dd7: 49 89 46 18 mov %rax,0x18(%r14) 401ddb: 48 b8 20 74 68 65 20 movabs $0x7265732065687420,%rax 401de2: 73 65 72 401de5: 49 89 46 20 mov %rax,0x20(%r14) 401de9: 41 c7 46 28 76 65 72 movl $0x726576,0x28(%r14) 401df0: 00 401df1: 44 89 e7 mov %r12d,%edi 401df4: e8 87 ed ff ff callq 400b80 <close@plt> 401df9: b8 ff ff ff ff mov $0xffffffff,%eax 401dfe: e9 a2 03 00 00 jmpq 4021a5 <submitr+0x7b5> 401e03: 44 89 a4 24 40 80 00 mov %r12d,0x8040(%rsp) 401e0a: 00 401e0b: c7 84 24 44 80 00 00 movl $0x0,0x8044(%rsp) 401e12: 00 00 00 00 401e16: 48 8d 84 24 50 80 00 lea 0x8050(%rsp),%rax 401e1d: 00 401e1e: 48 89 84 24 48 80 00 mov %rax,0x8048(%rsp) 401e25: 00 401e26: ba 00 20 00 00 mov $0x2000,%edx 401e2b: 48 8d b4 24 40 60 00 lea 0x6040(%rsp),%rsi 401e32: 00 401e33: 48 8d bc 24 40 80 00 lea 0x8040(%rsp),%rdi 401e3a: 00 401e3b: e8 99 fa ff ff callq 4018d9 <rio_readlineb> 401e40: 48 85 c0 test %rax,%rax 401e43: 7f 74 jg 401eb9 <submitr+0x4c9> 401e45: 48 b8 45 72 72 6f 72 movabs $0x43203a726f727245,%rax 401e4c: 3a 20 43 401e4f: 49 89 06 mov %rax,(%r14) 401e52: 48 b8 6c 69 65 6e 74 movabs $0x6e7520746e65696c,%rax 401e59: 20 75 6e 401e5c: 49 89 46 08 mov %rax,0x8(%r14) 401e60: 48 b8 61 62 6c 65 20 movabs $0x206f7420656c6261,%rax 401e67: 74 6f 20 401e6a: 49 89 46 10 mov %rax,0x10(%r14) 401e6e: 48 b8 72 65 61 64 20 movabs $0x7269662064616572,%rax 401e75: 66 69 72 401e78: 49 89 46 18 mov %rax,0x18(%r14) 401e7c: 48 b8 73 74 20 68 65 movabs $0x6564616568207473,%rax 401e83: 61 64 65 401e86: 49 89 46 20 mov %rax,0x20(%r14) 401e8a: 48 b8 72 20 66 72 6f movabs $0x73206d6f72662072,%rax 401e91: 6d 20 73 401e94: 49 89 46 28 mov %rax,0x28(%r14) 401e98: 41 c7 46 30 65 72 76 movl $0x65767265,0x30(%r14) 401e9f: 65 401ea0: 66 41 c7 46 34 72 00 movw $0x72,0x34(%r14) 401ea7: 44 89 e7 mov %r12d,%edi 401eaa: e8 d1 ec ff ff callq 400b80 <close@plt> 401eaf: b8 ff ff ff ff mov $0xffffffff,%eax 401eb4: e9 ec 02 00 00 jmpq 4021a5 <submitr+0x7b5> 401eb9: 4c 8d 44 24 30 lea 0x30(%rsp),%r8 401ebe: 48 8d 8c 24 3c 20 00 lea 0x203c(%rsp),%rcx 401ec5: 00 401ec6: 48 8d 94 24 40 20 00 lea 0x2040(%rsp),%rdx 401ecd: 00 401ece: be 7f 2a 40 00 mov $0x402a7f,%esi 401ed3: 48 8d bc 24 40 60 00 lea 0x6040(%rsp),%rdi 401eda: 00 401edb: b8 00 00 00 00 mov $0x0,%eax 401ee0: e8 4b ed ff ff callq 400c30 <__isoc99_sscanf@plt> 401ee5: 8b 94 24 3c 20 00 00 mov 0x203c(%rsp),%edx 401eec: 81 fa c8 00 00 00 cmp $0xc8,%edx 401ef2: 0f 84 b2 00 00 00 je 401faa <submitr+0x5ba> 401ef8: 48 8d 4c 24 30 lea 0x30(%rsp),%rcx 401efd: be d0 29 40 00 mov $0x4029d0,%esi 401f02: 4c 89 f7 mov %r14,%rdi 401f05: b8 00 00 00 00 mov $0x0,%eax 401f0a: e8 61 ed ff ff callq 400c70 <sprintf@plt> 401f0f: 44 89 e7 mov %r12d,%edi 401f12: e8 69 ec ff ff callq 400b80 <close@plt> 401f17: b8 ff ff ff ff mov $0xffffffff,%eax 401f1c: e9 84 02 00 00 jmpq 4021a5 <submitr+0x7b5> 401f21: ba 00 20 00 00 mov $0x2000,%edx 401f26: 48 8d b4 24 40 60 00 lea 0x6040(%rsp),%rsi 401f2d: 00 401f2e: 48 8d bc 24 40 80 00 lea 0x8040(%rsp),%rdi 401f35: 00 401f36: e8 9e f9 ff ff callq 4018d9 <rio_readlineb> 401f3b: 48 85 c0 test %rax,%rax 401f3e: 7f 6a jg 401faa <submitr+0x5ba> 401f40: 48 b8 45 72 72 6f 72 movabs $0x43203a726f727245,%rax 401f47: 3a 20 43 401f4a: 49 89 06 mov %rax,(%r14) 401f4d: 48 b8 6c 69 65 6e 74 movabs $0x6e7520746e65696c,%rax 401f54: 20 75 6e 401f57: 49 89 46 08 mov %rax,0x8(%r14) 401f5b: 48 b8 61 62 6c 65 20 movabs $0x206f7420656c6261,%rax 401f62: 74 6f 20 401f65: 49 89 46 10 mov %rax,0x10(%r14) 401f69: 48 b8 72 65 61 64 20 movabs $0x6165682064616572,%rax 401f70: 68 65 61 401f73: 49 89 46 18 mov %rax,0x18(%r14) 401f77: 48 b8 64 65 72 73 20 movabs $0x6f72662073726564,%rax 401f7e: 66 72 6f 401f81: 49 89 46 20 mov %rax,0x20(%r14) 401f85: 48 b8 6d 20 73 65 72 movabs $0x726576726573206d,%rax 401f8c: 76 65 72 401f8f: 49 89 46 28 mov %rax,0x28(%r14) 401f93: 41 c6 46 30 00 movb $0x0,0x30(%r14) 401f98: 44 89 e7 mov %r12d,%edi 401f9b: e8 e0 eb ff ff callq 400b80 <close@plt> 401fa0: b8 ff ff ff ff mov $0xffffffff,%eax 401fa5: e9 fb 01 00 00 jmpq 4021a5 <submitr+0x7b5> 401faa: 80 bc 24 40 60 00 00 cmpb $0xd,0x6040(%rsp) 401fb1: 0d 401fb2: 0f 85 69 ff ff ff jne 401f21 <submitr+0x531> 401fb8: 80 bc 24 41 60 00 00 cmpb $0xa,0x6041(%rsp) 401fbf: 0a 401fc0: 0f 85 5b ff ff ff jne 401f21 <submitr+0x531> 401fc6: 80 bc 24 42 60 00 00 cmpb $0x0,0x6042(%rsp) 401fcd: 00 401fce: 0f 85 4d ff ff ff jne 401f21 <submitr+0x531> 401fd4: ba 00 20 00 00 mov $0x2000,%edx 401fd9: 48 8d b4 24 40 60 00 lea 0x6040(%rsp),%rsi 401fe0: 00 401fe1: 48 8d bc 24 40 80 00 lea 0x8040(%rsp),%rdi 401fe8: 00 401fe9: e8 eb f8 ff ff callq 4018d9 <rio_readlineb> 401fee: 48 85 c0 test %rax,%rax 401ff1: 7f 73 jg 402066 <submitr+0x676> 401ff3: 48 b8 45 72 72 6f 72 movabs $0x43203a726f727245,%rax 401ffa: 3a 20 43 401ffd: 49 89 06 mov %rax,(%r14) 402000: 48 b8 6c 69 65 6e 74 movabs $0x6e7520746e65696c,%rax 402007: 20 75 6e 40200a: 49 89 46 08 mov %rax,0x8(%r14) 40200e: 48 b8 61 62 6c 65 20 movabs $0x206f7420656c6261,%rax 402015: 74 6f 20 402018: 49 89 46 10 mov %rax,0x10(%r14) 40201c: 48 b8 72 65 61 64 20 movabs $0x6174732064616572,%rax 402023: 73 74 61 402026: 49 89 46 18 mov %rax,0x18(%r14) 40202a: 48 b8 74 75 73 20 6d movabs $0x7373656d20737574,%rax 402031: 65 73 73 402034: 49 89 46 20 mov %rax,0x20(%r14) 402038: 48 b8 61 67 65 20 66 movabs $0x6d6f726620656761,%rax 40203f: 72 6f 6d 402042: 49 89 46 28 mov %rax,0x28(%r14) 402046: 48 b8 20 73 65 72 76 movabs $0x72657672657320,%rax 40204d: 65 72 00 402050: 49 89 46 30 mov %rax,0x30(%r14) 402054: 44 89 e7 mov %r12d,%edi 402057: e8 24 eb ff ff callq 400b80 <close@plt> 40205c: b8 ff ff ff ff mov $0xffffffff,%eax 402061: e9 3f 01 00 00 jmpq 4021a5 <submitr+0x7b5> 402066: 48 8d b4 24 40 60 00 lea 0x6040(%rsp),%rsi 40206d: 00 40206e: 4c 89 f7 mov %r14,%rdi 402071: e8 ba ea ff ff callq 400b30 <strcpy@plt> 402076: 44 89 e7 mov %r12d,%edi 402079: e8 02 eb ff ff callq 400b80 <close@plt> 40207e: 41 0f b6 06 movzbl (%r14),%eax 402082: 83 e8 4f sub $0x4f,%eax 402085: 75 0f jne 402096 <submitr+0x6a6> 402087: 41 0f b6 46 01 movzbl 0x1(%r14),%eax 40208c: 83 e8 4b sub $0x4b,%eax 40208f: 75 05 jne 402096 <submitr+0x6a6> 402091: 41 0f b6 46 02 movzbl 0x2(%r14),%eax 402096: 85 c0 test %eax,%eax 402098: 0f 95 c0 setne %al 40209b: 0f b6 c0 movzbl %al,%eax 40209e: f7 d8 neg %eax 4020a0: e9 00 01 00 00 jmpq 4021a5 <submitr+0x7b5> 4020a5: 48 8d 84 24 40 40 00 lea 0x4040(%rsp),%rax 4020ac: 00 4020ad: 48 89 04 24 mov %rax,(%rsp) 4020b1: 4d 89 f9 mov %r15,%r9 4020b4: 4c 8b 44 24 18 mov 0x18(%rsp),%r8 4020b9: 48 8b 4c 24 10 mov 0x10(%rsp),%rcx 4020be: 48 8b 54 24 08 mov 0x8(%rsp),%rdx 4020c3: be 00 2a 40 00 mov $0x402a00,%esi 4020c8: 48 8d bc 24 40 60 00 lea 0x6040(%rsp),%rdi 4020cf: 00 4020d0: b8 00 00 00 00 mov $0x0,%eax 4020d5: e8 96 eb ff ff callq 400c70 <sprintf@plt> 4020da: 48 8d bc 24 40 60 00 lea 0x6040(%rsp),%rdi 4020e1: 00 4020e2: e8 59 ea ff ff callq 400b40 <puts@plt> 4020e7: 48 8d bc 24 40 60 00 lea 0x6040(%rsp),%rdi 4020ee: 00 4020ef: b8 00 00 00 00 mov $0x0,%eax 4020f4: 48 c7 c1 ff ff ff ff mov $0xffffffffffffffff,%rcx 4020fb: f2 ae repnz scas %es:(%rdi),%al 4020fd: 48 f7 d1 not %rcx 402100: 48 83 e9 01 sub $0x1,%rcx 402104: 49 89 cd mov %rcx,%r13 402107: 0f 84 f6 fc ff ff je 401e03 <submitr+0x413> 40210d: 48 89 cb mov %rcx,%rbx 402110: 48 8d ac 24 40 60 00 lea 0x6040(%rsp),%rbp 402117: 00 402118: e9 57 fc ff ff jmpq 401d74 <submitr+0x384> 40211d: 48 b8 45 72 72 6f 72 movabs $0x52203a726f727245,%rax 402124: 3a 20 52 402127: 49 89 06 mov %rax,(%r14) 40212a: 48 b8 65 73 75 6c 74 movabs $0x747320746c757365,%rax 402131: 20 73 74 402134: 49 89 46 08 mov %rax,0x8(%r14) 402138: 48 b8 72 69 6e 67 20 movabs $0x6e6f6320676e6972,%rax 40213f: 63 6f 6e 402142: 49 89 46 10 mov %rax,0x10(%r14) 402146: 48 b8 74 61 69 6e 73 movabs $0x6e6120736e696174,%rax 40214d: 20 61 6e 402150: 49 89 46 18 mov %rax,0x18(%r14) 402154: 48 b8 20 69 6c 6c 65 movabs $0x6c6167656c6c6920,%rax 40215b: 67 61 6c 40215e: 49 89 46 20 mov %rax,0x20(%r14) 402162: 48 b8 20 6f 72 20 75 movabs $0x72706e7520726f20,%rax 402169: 6e 70 72 40216c: 49 89 46 28 mov %rax,0x28(%r14) 402170: 48 b8 69 6e 74 61 62 movabs $0x20656c6261746e69,%rax 402177: 6c 65 20 40217a: 49 89 46 30 mov %rax,0x30(%r14) 40217e: 48 b8 63 68 61 72 61 movabs $0x6574636172616863,%rax 402185: 63 74 65 402188: 49 89 46 38 mov %rax,0x38(%r14) 40218c: 66 41 c7 46 40 72 2e movw $0x2e72,0x40(%r14) 402193: 41 c6 46 42 00 movb $0x0,0x42(%r14) 402198: 44 89 e7 mov %r12d,%edi 40219b: e8 e0 e9 ff ff callq 400b80 <close@plt> 4021a0: b8 ff ff ff ff mov $0xffffffff,%eax 4021a5: 48 81 c4 68 a0 00 00 add $0xa068,%rsp 4021ac: 5b pop %rbx 4021ad: 5d pop %rbp 4021ae: 41 5c pop %r12 4021b0: 41 5d pop %r13 4021b2: 41 5e pop %r14 4021b4: 41 5f pop %r15 4021b6: c3 retq
00000000004021b7 <init_timeout>: 4021b7: 53 push %rbx 4021b8: 89 fb mov %edi,%ebx 4021ba: 85 ff test %edi,%edi 4021bc: 74 1e je 4021dc <init_timeout+0x25> 4021be: be b0 18 40 00 mov $0x4018b0,%esi 4021c3: bf 0e 00 00 00 mov $0xe,%edi 4021c8: e8 f3 e9 ff ff callq 400bc0 <signal@plt> 4021cd: 85 db test %ebx,%ebx 4021cf: bf 00 00 00 00 mov $0x0,%edi 4021d4: 0f 49 fb cmovns %ebx,%edi 4021d7: e8 94 e9 ff ff callq 400b70 <alarm@plt> 4021dc: 5b pop %rbx 4021dd: c3 retq
00000000004021de <init_driver>: 4021de: 55 push %rbp 4021df: 53 push %rbx 4021e0: 48 83 ec 18 sub $0x18,%rsp 4021e4: 48 89 fd mov %rdi,%rbp 4021e7: be 01 00 00 00 mov $0x1,%esi 4021ec: bf 0d 00 00 00 mov $0xd,%edi 4021f1: e8 ca e9 ff ff callq 400bc0 <signal@plt> 4021f6: be 01 00 00 00 mov $0x1,%esi 4021fb: bf 1d 00 00 00 mov $0x1d,%edi 402200: e8 bb e9 ff ff callq 400bc0 <signal@plt> 402205: be 01 00 00 00 mov $0x1,%esi 40220a: bf 1d 00 00 00 mov $0x1d,%edi 40220f: e8 ac e9 ff ff callq 400bc0 <signal@plt> 402214: ba 00 00 00 00 mov $0x0,%edx 402219: be 01 00 00 00 mov $0x1,%esi 40221e: bf 02 00 00 00 mov $0x2,%edi 402223: e8 98 ea ff ff callq 400cc0 <socket@plt> 402228: 89 c3 mov %eax,%ebx 40222a: 85 c0 test %eax,%eax 40222c: 79 4f jns 40227d <init_driver+0x9f> 40222e: 48 b8 45 72 72 6f 72 movabs $0x43203a726f727245,%rax 402235: 3a 20 43 402238: 48 89 45 00 mov %rax,0x0(%rbp) 40223c: 48 b8 6c 69 65 6e 74 movabs $0x6e7520746e65696c,%rax 402243: 20 75 6e 402246: 48 89 45 08 mov %rax,0x8(%rbp) 40224a: 48 b8 61 62 6c 65 20 movabs $0x206f7420656c6261,%rax 402251: 74 6f 20 402254: 48 89 45 10 mov %rax,0x10(%rbp) 402258: 48 b8 63 72 65 61 74 movabs $0x7320657461657263,%rax 40225f: 65 20 73 402262: 48 89 45 18 mov %rax,0x18(%rbp) 402266: c7 45 20 6f 63 6b 65 movl $0x656b636f,0x20(%rbp) 40226d: 66 c7 45 24 74 00 movw $0x74,0x24(%rbp) 402273: b8 ff ff ff ff mov $0xffffffff,%eax 402278: e9 f8 00 00 00 jmpq 402375 <init_driver+0x197> 40227d: bf 90 2a 40 00 mov $0x402a90,%edi 402282: e8 49 e9 ff ff callq 400bd0 <gethostbyname@plt> 402287: 48 85 c0 test %rax,%rax 40228a: 75 68 jne 4022f4 <init_driver+0x116> 40228c: 48 b8 45 72 72 6f 72 movabs $0x44203a726f727245,%rax 402293: 3a 20 44 402296: 48 89 45 00 mov %rax,0x0(%rbp) 40229a: 48 b8 4e 53 20 69 73 movabs $0x6e7520736920534e,%rax 4022a1: 20 75 6e 4022a4: 48 89 45 08 mov %rax,0x8(%rbp) 4022a8: 48 b8 61 62 6c 65 20 movabs $0x206f7420656c6261,%rax 4022af: 74 6f 20 4022b2: 48 89 45 10 mov %rax,0x10(%rbp) 4022b6: 48 b8 72 65 73 6f 6c movabs $0x2065766c6f736572,%rax 4022bd: 76 65 20 4022c0: 48 89 45 18 mov %rax,0x18(%rbp) 4022c4: 48 b8 73 65 72 76 65 movabs $0x6120726576726573,%rax 4022cb: 72 20 61 4022ce: 48 89 45 20 mov %rax,0x20(%rbp) 4022d2: c7 45 28 64 64 72 65 movl $0x65726464,0x28(%rbp) 4022d9: 66 c7 45 2c 73 73 movw $0x7373,0x2c(%rbp) 4022df: c6 45 2e 00 movb $0x0,0x2e(%rbp) 4022e3: 89 df mov %ebx,%edi 4022e5: e8 96 e8 ff ff callq 400b80 <close@plt> 4022ea: b8 ff ff ff ff mov $0xffffffff,%eax 4022ef: e9 81 00 00 00 jmpq 402375 <init_driver+0x197> 4022f4: 48 c7 04 24 00 00 00 movq $0x0,(%rsp) 4022fb: 00 4022fc: 48 c7 44 24 08 00 00 movq $0x0,0x8(%rsp) 402303: 00 00 402305: 66 c7 04 24 02 00 movw $0x2,(%rsp) 40230b: 48 63 50 14 movslq 0x14(%rax),%rdx 40230f: 48 8d 74 24 04 lea 0x4(%rsp),%rsi 402314: 48 8b 40 18 mov 0x18(%rax),%rax 402318: 48 8b 38 mov (%rax),%rdi 40231b: e8 20 e9 ff ff callq 400c40 <bcopy@plt> 402320: 66 c7 44 24 02 3b 6e movw $0x6e3b,0x2(%rsp) 402327: ba 10 00 00 00 mov $0x10,%edx 40232c: 48 89 e6 mov %rsp,%rsi 40232f: 89 df mov %ebx,%edi 402331: e8 5a e9 ff ff callq 400c90 <connect@plt> 402336: 85 c0 test %eax,%eax 402338: 79 25 jns 40235f <init_driver+0x181> 40233a: ba 90 2a 40 00 mov $0x402a90,%edx 40233f: be 50 2a 40 00 mov $0x402a50,%esi 402344: 48 89 ef mov %rbp,%rdi 402347: b8 00 00 00 00 mov $0x0,%eax 40234c: e8 1f e9 ff ff callq 400c70 <sprintf@plt> 402351: 89 df mov %ebx,%edi 402353: e8 28 e8 ff ff callq 400b80 <close@plt> 402358: b8 ff ff ff ff mov $0xffffffff,%eax 40235d: eb 16 jmp 402375 <init_driver+0x197> 40235f: 89 df mov %ebx,%edi 402361: e8 1a e8 ff ff callq 400b80 <close@plt> 402366: 66 c7 45 00 4f 4b movw $0x4b4f,0x0(%rbp) 40236c: c6 45 02 00 movb $0x0,0x2(%rbp) 402370: b8 00 00 00 00 mov $0x0,%eax 402375: 48 83 c4 18 add $0x18,%rsp 402379: 5b pop %rbx 40237a: 5d pop %rbp 40237b: c3 retq
000000000040237c <driver_post>: 40237c: 53 push %rbx 40237d: 48 83 ec 10 sub $0x10,%rsp 402381: 4c 89 c3 mov %r8,%rbx 402384: 85 c9 test %ecx,%ecx 402386: 74 22 je 4023aa <driver_post+0x2e> 402388: 48 89 d6 mov %rdx,%rsi 40238b: bf 9d 2a 40 00 mov $0x402a9d,%edi 402390: b8 00 00 00 00 mov $0x0,%eax 402395: e8 c6 e7 ff ff callq 400b60 <printf@plt> 40239a: 66 c7 03 4f 4b movw $0x4b4f,(%rbx) 40239f: c6 43 02 00 movb $0x0,0x2(%rbx) 4023a3: b8 00 00 00 00 mov $0x0,%eax 4023a8: eb 43 jmp 4023ed <driver_post+0x71> 4023aa: 48 85 ff test %rdi,%rdi 4023ad: 74 30 je 4023df <driver_post+0x63> 4023af: 80 3f 00 cmpb $0x0,(%rdi) 4023b2: 74 2b je 4023df <driver_post+0x63> 4023b4: 4c 89 44 24 08 mov %r8,0x8(%rsp) 4023b9: 48 89 14 24 mov %rdx,(%rsp) 4023bd: 41 b9 b4 2a 40 00 mov $0x402ab4,%r9d 4023c3: 49 89 f0 mov %rsi,%r8 4023c6: 48 89 f9 mov %rdi,%rcx 4023c9: ba ba 2a 40 00 mov $0x402aba,%edx 4023ce: be 6e 3b 00 00 mov $0x3b6e,%esi 4023d3: bf 90 2a 40 00 mov $0x402a90,%edi 4023d8: e8 13 f6 ff ff callq 4019f0 <submitr> 4023dd: eb 0e jmp 4023ed <driver_post+0x71> 4023df: 66 c7 03 4f 4b movw $0x4b4f,(%rbx) 4023e4: c6 43 02 00 movb $0x0,0x2(%rbx) 4023e8: b8 00 00 00 00 mov $0x0,%eax 4023ed: 48 83 c4 10 add $0x10,%rsp 4023f1: 5b pop %rbx 4023f2: c3 retq 4023f3: 66 2e 0f 1f 84 00 00 nopw %cs:0x0(%rax,%rax,1) 4023fa: 00 00 00 4023fd: 0f 1f 00 nopl (%rax)
0000000000402400 <__libc_csu_init>: 402400: 41 57 push %r15 402402: 41 89 ff mov %edi,%r15d 402405: 41 56 push %r14 402407: 49 89 f6 mov %rsi,%r14 40240a: 41 55 push %r13 40240c: 49 89 d5 mov %rdx,%r13 40240f: 41 54 push %r12 402411: 4c 8d 25 f8 19 20 00 lea 0x2019f8(%rip),%r12 # 603e10 <__frame_dummy_init_array_entry> 402418: 55 push %rbp 402419: 48 8d 2d f8 19 20 00 lea 0x2019f8(%rip),%rbp # 603e18 <__init_array_end> 402420: 53 push %rbx 402421: 4c 29 e5 sub %r12,%rbp 402424: 31 db xor %ebx,%ebx 402426: 48 c1 fd 03 sar $0x3,%rbp 40242a: 48 83 ec 08 sub $0x8,%rsp 40242e: e8 9d e6 ff ff callq 400ad0 <_init> 402433: 48 85 ed test %rbp,%rbp 402436: 74 1e je 402456 <__libc_csu_init+0x56> 402438: 0f 1f 84 00 00 00 00 nopl 0x0(%rax,%rax,1) 40243f: 00 402440: 4c 89 ea mov %r13,%rdx 402443: 4c 89 f6 mov %r14,%rsi 402446: 44 89 ff mov %r15d,%edi 402449: 41 ff 14 dc callq *(%r12,%rbx,8) 40244d: 48 83 c3 01 add $0x1,%rbx 402451: 48 39 eb cmp %rbp,%rbx 402454: 75 ea jne 402440 <__libc_csu_init+0x40> 402456: 48 83 c4 08 add $0x8,%rsp 40245a: 5b pop %rbx 40245b: 5d pop %rbp 40245c: 41 5c pop %r12 40245e: 41 5d pop %r13 402460: 41 5e pop %r14 402462: 41 5f pop %r15 402464: c3 retq 402465: 90 nop 402466: 66 2e 0f 1f 84 00 00 nopw %cs:0x0(%rax,%rax,1) 40246d: 00 00 00
0000000000402470 <__libc_csu_fini>: 402470: f3 c3 repz retq
Disassembly of section .fini:
0000000000402474 <_fini>: 402474: 48 83 ec 08 sub $0x8,%rsp 402478: 48 83 c4 08 add $0x8,%rsp 40247c: c3 retqphase_1 字符串比较
可知其进行的是字符串比较，待比较的基准字符串地址为0x4025e0；
于是gdb调试运行：print (char *)0x4025e0，结果如下：
可知phase_1的目标字符串是The future will be better tomorrow.
-
phase_10000000000400ef0 <phase_1>:400ef0: 48 83 ec 08 sub $0x8,%rsp ; 分配8个字节的栈空间400ef4: be e0 25 40 00 mov $0x4025e0,%esi ; 将地址0x4025e0赋值给esi400ef9: e8 e0 04 00 00 callq 4013de <strings_not_equal> ; 调用字符比较函数400efe: 85 c0 test %eax,%eax ; 检查%eax是否为0400f00: 74 05 je 400f07 <phase_1+0x17> ; 若为0则跳转，避免爆炸400f02: e8 82 07 00 00 callq 401689 <explode_bomb> ; 否则爆炸400f07: 48 83 c4 08 add $0x8,%rsp400f0b: c3 retq
phase_2 循环
答案是0 1 3 6 10 15
-
phase_20000000000400f0c <phase_2>: ; 6个整数：最后一个为0，当前数=后一个数+当前序号（序号从后往前数，从0开始）=> 0 1 3 6 10 15400f0c: 55 push %rbp400f0d: 53 push %rbx ; 保存%rbx和%rbp在栈上400f0e: 48 83 ec 28 sub $0x28,%rsp ; 分配40个字节的栈空间400f12: 48 89 e6 mov %rsp,%rsi400f15: e8 a5 07 00 00 callq 4016bf <read_six_numbers>400f1a: 83 3c 24 00 cmpl $0x0,(%rsp) ; 检查栈顶元素的值是否为0400f1e: 79 24 jns 400f44 <phase_2+0x38> ; 若非负（即栈顶不小于0时）则跳转，否则爆炸400f20: e8 64 07 00 00 callq 401689 <explode_bomb>400f25: eb 1d jmp 400f44 <phase_2+0x38>400f27: 89 d8 mov %ebx,%eax400f29: 03 45 fc add -0x4(%rbp),%eax ; rbp-4处的值（上一个数字）加到eax上400f2c: 39 45 00 cmp %eax,0x0(%rbp) ; 比较rbp处的值（当前数字）和eax400f2f: 74 05 je 400f36 <phase_2+0x2a> ; 若相等则跳转，否则爆炸400f31: e8 53 07 00 00 callq 401689 <explode_bomb>400f36: 83 c3 01 add $0x1,%ebx ; 迭代器ebx加1400f39: 48 83 c5 04 add $0x4,%rbp ; rbp加4，指向下一个整数400f3d: 83 fb 06 cmp $0x6,%ebx400f40: 75 e5 jne 400f27 <phase_2+0x1b>400f42: eb 0c jmp 400f50 <phase_2+0x44>400f44: 48 8d 6c 24 04 lea 0x4(%rsp),%rbp ; rbp指向rsp+4处，下一个整数400f49: bb 01 00 00 00 mov $0x1,%ebx ; 迭代器ebx置1400f4e: eb d7 jmp 400f27 <phase_2+0x1b>400f50: 48 83 c4 28 add $0x28,%rsp400f54: 5b pop %rbx400f55: 5d pop %rbp400f56: c3 retq00000000004016bf <read_six_numbers>: ; 读取6个整数依次入栈4016bf: 48 83 ec 18 sub $0x18,%rsp ; 接下来设置参数，指示读取整数后保存的地址4016c3: 48 89 f2 mov %rsi,%rdx ; rdx = rsi4016c6: 48 8d 4e 04 lea 0x4(%rsi),%rcx ; rcx = rsi+44016ca: 48 8d 46 14 lea 0x14(%rsi),%rax4016ce: 48 89 44 24 08 mov %rax,0x8(%rsp) ; [rsp+8] = rsi+204016d3: 48 8d 46 10 lea 0x10(%rsi),%rax ; rax = rsi+164016d7: 48 89 04 24 mov %rax,(%rsp)4016db: 4c 8d 4e 0c lea 0xc(%rsi),%r9 ; r9 = rsi+124016df: 4c 8d 46 08 lea 0x8(%rsi),%r8 ; r8 = rsi+84016e3: be d5 28 40 00 mov $0x4028d5,%esi ; 指示读取的目标地址和读取格式4016e8: b8 00 00 00 00 mov $0x0,%eax4016ed: e8 3e f5 ff ff callq 400c30 <__isoc99_sscanf@plt>4016f2: 83 f8 05 cmp $0x5,%eax4016f5: 7f 05 jg 4016fc <read_six_numbers+0x3d>4016f7: e8 8d ff ff ff callq 401689 <explode_bomb>4016fc: 48 83 c4 18 add $0x18,%rsp401700: c3 retq
phase_3 条件/分支switch
题目考察switch分支结构，涉及转发表的查看和理解，但题目的难点在于发现输入的读取格式。
此题的关键在于发现函数<__isoc99_sscanf@plt>的读取格式：
400f6a: be 2e 26 40 00 mov $0x40262e,%esi ; 设置读取格式“%d %c %d”终端输入x/s 0x40262e，以字符串形式读取，结果如下：
可知其读取格式为<int char int>，其中后两者之间可以不空格

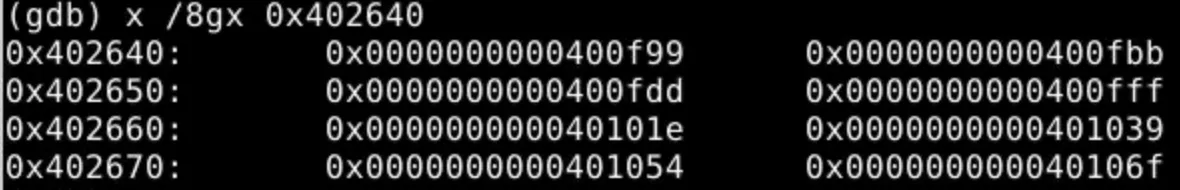

可知跳转表的起始地址为0x402640，且应该包含有8个地址，查看如下：
本题的每一个switch都对应一个答案。对于.L1，答案是1 r461。
-
phase_30000000000400f57 <phase_3>: ; <int char int>，其中char和第二个int之间可以不空格400f57: 48 83 ec 18 sub $0x18,%rsp ; 分配24个字节的栈空间400f5b: 4c 8d 44 24 08 lea 0x8(%rsp),%r8 ; r8 = rsp+8 参数三（int）存放在rsp+8处 【根据phase_2中的read_six_number函数推导出】400f60: 48 8d 4c 24 07 lea 0x7(%rsp),%rcx ; rcx = rsp+7 参数二（char）存放在rsp+7处400f65: 48 8d 54 24 0c lea 0xc(%rsp),%rdx ; rdx = rsp+12 参数一（int）存放在rsp+12处400f6a: be 2e 26 40 00 mov $0x40262e,%esi ; 读取格式为“%d %c %d”400f6f: b8 00 00 00 00 mov $0x0,%eax400f74: e8 b7 fc ff ff callq 400c30 <__isoc99_sscanf@plt>400f79: 83 f8 02 cmp $0x2,%eax ; 输入整数应大于2个400f7c: 7f 05 jg 400f83 <phase_3+0x2c>400f7e: e8 06 07 00 00 callq 401689 <explode_bomb>400f83: 83 7c 24 0c 07 cmpl $0x7,0xc(%rsp) ; 转发表有8个地址，比较的对象是参数一400f88: 0f 87 fc 00 00 00 ja 40108a <phase_3+0x133>400f8e: 8b 44 24 0c mov 0xc(%rsp),%eax400f92: ff 24 c5 40 26 40 00 jmpq *0x402640(,%rax,8) ; 跳转表的起始地址为0x402640，根据eax的值跳转到不同的地址; .L0 第一个数为0时，栈不会写入400f99: b8 44 00 00 00 mov $0x44,%eax400f9e: 81 7c 24 08 91 02 00 cmpl $0x291,0x8(%rsp) ; 比较第三个数和0x291，相等则跳转，否则爆炸400fa5: 00400fa6: 0f 84 e8 00 00 00 je 401094 <phase_3+0x13d>400fac: e8 d8 06 00 00 callq 401689 <explode_bomb>400fb1: b8 44 00 00 00 mov $0x44,%eax400fb6: e9 d9 00 00 00 jmpq 401094 <phase_3+0x13d>; .L1400fbb: b8 72 00 00 00 mov $0x72,%eax ; 0x72 = 'r'400fc0: 81 7c 24 08 cd 01 00 cmpl $0x1cd,0x8(%rsp)400fc7: 00400fc8: 0f 84 c6 00 00 00 je 401094 <phase_3+0x13d>400fce: e8 b6 06 00 00 callq 401689 <explode_bomb>400fd3: b8 72 00 00 00 mov $0x72,%eax400fd8: e9 b7 00 00 00 jmpq 401094 <phase_3+0x13d>; .L2400fdd: b8 59 00 00 00 mov $0x59,%eax400fe2: 81 7c 24 08 a5 00 00 cmpl $0xa5,0x8(%rsp)400fe9: 00400fea: 0f 84 a4 00 00 00 je 401094 <phase_3+0x13d>400ff0: e8 94 06 00 00 callq 401689 <explode_bomb>400ff5: b8 59 00 00 00 mov $0x59,%eax400ffa: e9 95 00 00 00 jmpq 401094 <phase_3+0x13d>; .L3400fff: b8 79 00 00 00 mov $0x79,%eax401004: 81 7c 24 08 2a 01 00 cmpl $0x12a,0x8(%rsp)40100b: 0040100c: 0f 84 82 00 00 00 je 401094 <phase_3+0x13d>401012: e8 72 06 00 00 callq 401689 <explode_bomb>401017: b8 79 00 00 00 mov $0x79,%eax40101c: eb 76 jmp 401094 <phase_3+0x13d>; .L440101e: b8 51 00 00 00 mov $0x51,%eax401023: 81 7c 24 08 50 02 00 cmpl $0x250,0x8(%rsp)40102a: 0040102b: 74 67 je 401094 <phase_3+0x13d>40102d: e8 57 06 00 00 callq 401689 <explode_bomb>401032: b8 51 00 00 00 mov $0x51,%eax401037: eb 5b jmp 401094 <phase_3+0x13d>; .L5401039: b8 4b 00 00 00 mov $0x4b,%eax40103e: 81 7c 24 08 76 02 00 cmpl $0x276,0x8(%rsp)401045: 00401046: 74 4c je 401094 <phase_3+0x13d>401048: e8 3c 06 00 00 callq 401689 <explode_bomb>40104d: b8 4b 00 00 00 mov $0x4b,%eax401052: eb 40 jmp 401094 <phase_3+0x13d>; .L6401054: b8 78 00 00 00 mov $0x78,%eax401059: 81 7c 24 08 cd 03 00 cmpl $0x3cd,0x8(%rsp)401060: 00401061: 74 31 je 401094 <phase_3+0x13d>401063: e8 21 06 00 00 callq 401689 <explode_bomb>401068: b8 78 00 00 00 mov $0x78,%eax40106d: eb 25 jmp 401094 <phase_3+0x13d>; .L740106f: b8 45 00 00 00 mov $0x45,%eax401074: 81 7c 24 08 2e 03 00 cmpl $0x32e,0x8(%rsp)40107b: 0040107c: 74 16 je 401094 <phase_3+0x13d>40107e: e8 06 06 00 00 callq 401689 <explode_bomb>401083: b8 45 00 00 00 mov $0x45,%eax401088: eb 0a jmp 401094 <phase_3+0x13d>; default40108a: e8 fa 05 00 00 callq 401689 <explode_bomb>40108f: b8 76 00 00 00 mov $0x76,%eax401094: 3a 44 24 07 cmp 0x7(%rsp),%al ; 比较第二个数和eax低8位，相等则结束，否则爆炸401098: 74 05 je 40109f <phase_3+0x148>40109a: e8 ea 05 00 00 callq 401689 <explode_bomb>40109f: 48 83 c4 18 add $0x18,%rsp4010a3: c3 retq
phase_4 递归
此题主要要将递归函数func4()给捋明白，可写成C语言样式辅助理解。
答案是5 2
-
phase_400000000004010e2 <phase_4>: ; m=5 n=24010e2: 48 83 ec 18 sub $0x18,%rsp4010e6: 48 8d 4c 24 08 lea 0x8(%rsp),%rcx ; 第二个数n4010eb: 48 8d 54 24 0c lea 0xc(%rsp),%rdx ; 第一个数m4010f0: be e1 28 40 00 mov $0x4028e1,%esi ; 读取格式为“%d %d”4010f5: b8 00 00 00 00 mov $0x0,%eax4010fa: e8 31 fb ff ff callq 400c30 <__isoc99_sscanf@plt>4010ff: 83 f8 02 cmp $0x2,%eax401102: 75 07 jne 40110b <phase_4+0x29>401104: 83 7c 24 0c 0e cmpl $0xe,0xc(%rsp) ; 比较第一个数m和0xe，大于等于则跳转，否则爆炸401109: 76 05 jbe 401110 <phase_4+0x2e>40110b: e8 79 05 00 00 callq 401689 <explode_bomb>401110: ba 0e 00 00 00 mov $0xe,%edx ; c=e 设置参数，调用函数<func4>401115: be 00 00 00 00 mov $0x0,%esi ; b=040111a: 8b 7c 24 0c mov 0xc(%rsp),%edi ; a=m40111e: e8 81 ff ff ff callq 4010a4 <func4> ; func4(%edi=m, %esi=0x0, %edx=0xe)401123: 83 f8 02 cmp $0x2,%eax ; 返回值为2则跳转，否则爆炸401126: 75 07 jne 40112f <phase_4+0x4d>401128: 83 7c 24 08 02 cmpl $0x2,0x8(%rsp) ; 比较[rsp+8]和2，相等则跳转，否则爆炸40112d: 74 05 je 401134 <phase_4+0x52>40112f: e8 55 05 00 00 callq 401689 <explode_bomb>401134: 48 83 c4 18 add $0x18,%rsp401138: c3 retq -
func400000000004010a4 <func4>:4010a4: 48 83 ec 08 sub $0x8,%rsp4010a8: 89 d0 mov %edx,%eax ; res = c4010aa: 29 f0 sub %esi,%eax ; res -= b4010ac: 89 c1 mov %eax,%ecx ; ecx = res>>314010ae: c1 e9 1f shr $0x1f,%ecx4010b1: 01 c8 add %ecx,%eax ; res += ecx4010b3: d1 f8 sar %eax ; res >>= 14010b5: 8d 0c 30 lea (%rax,%rsi,1),%ecx ; ecx = res + b4010b8: 39 f9 cmp %edi,%ecx4010ba: 7e 0c jle 4010c8 <func4+0x24> ; if(ecx<=a) goto 4010c84010bc: 8d 51 ff lea -0x1(%rcx),%edx ; c = ecx - 14010bf: e8 e0 ff ff ff callq 4010a4 <func4> ; res = func4()4010c4: 01 c0 add %eax,%eax ; res += res4010c6: eb 15 jmp 4010dd <func4+0x39> ; return res4010c8: b8 00 00 00 00 mov $0x0,%eax ; res = 04010cd: 39 f9 cmp %edi,%ecx4010cf: 7d 0c jge 4010dd <func4+0x39> ; if(ecx>=a) return res;4010d1: 8d 71 01 lea 0x1(%rcx),%esi ; b = ecx + 14010d4: e8 cb ff ff ff callq 4010a4 <func4> ; res = func4()4010d9: 8d 44 00 01 lea 0x1(%rax,%rax,1),%eax ; res = 2*res+14010dd: 48 83 c4 08 add $0x8,%rsp ; return res4010e1: c3 retq写成C语言大概是：
//a in %edi, b in %esi, c in %edxint func4(int a, int b, int c){ // m,0,14 m,0,6 m,4,6int res = c - b;res = (res + res>>31) >> 1;int ecx = res + b; // 7 3 5if(ecx < a){ // m>3res = func4(a, ecx + 1, c); //return res*2 + 1;}else if(ecx > a){ // m<14res = func4(a, b, ecx-1); //return res*2;}else{ // m=5return 0;}}
phase_5 指针
已知一个数组，根据题目要求来安排遍历的起点，规定了遍历的规则、次数和终点。

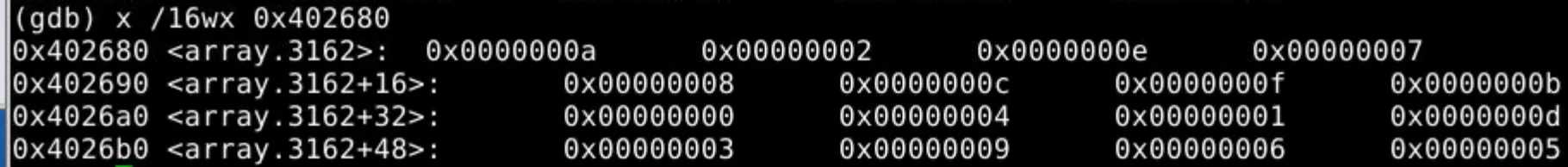

根据第40117f行中的地址，可以通过gdb查看该数组中的元素：
可知，我们需要选定遍历数组的起点，使得遍历的次数刚好为6，且在元素0xf处跳出循环。（以当前元素的值作为下一次遍历的下标）
可知遍历路线应当为： 0xa→0x1→0x2→0xe→0x6→0xf
输入的参数为两个整数，一个指示遍历的起点下标，一个记录遍历元素的累积和。
因此答案为0 48。
-
phase_50000000000401139 <phase_5>:401139: 48 83 ec 18 sub $0x18,%rsp40113d: 48 8d 4c 24 08 lea 0x8(%rsp),%rcx ; 参数二401142: 48 8d 54 24 0c lea 0xc(%rsp),%rdx ; 参数一401147: be e1 28 40 00 mov $0x4028e1,%esi40114c: b8 00 00 00 00 mov $0x0,%eax401151: e8 da fa ff ff callq 400c30 <__isoc99_sscanf@plt>401156: 83 f8 01 cmp $0x1,%eax401159: 7f 05 jg 401160 <phase_5+0x27>40115b: e8 29 05 00 00 callq 401689 <explode_bomb>401160: 8b 44 24 0c mov 0xc(%rsp),%eax401164: 83 e0 0f and $0xf,%eax401167: 89 44 24 0c mov %eax,0xc(%rsp) ; 参数一仅保留低4位40116b: 83 f8 0f cmp $0xf,%eax40116e: 74 2c je 40119c <phase_5+0x63> ; 若参数一低4位全1，则爆炸401170: b9 00 00 00 00 mov $0x0,%ecx401175: ba 00 00 00 00 mov $0x0,%edx40117a: 83 c2 01 add $0x1,%edx ; ecx=0,edx=1,开始循环40117d: 48 98 cltq ; 符号拓展rax40117f: 8b 04 85 80 26 40 00 mov 0x402680(,%rax,4),%eax ; 取数组下标为rax的数401186: 01 c1 add %eax,%ecx ; 累加遍历到的元素401188: 83 f8 0f cmp $0xf,%eax ; 若当前数=0xf则跳出循环40118b: 75 ed jne 40117a <phase_5+0x41>40118d: 89 44 24 0c mov %eax,0xc(%rsp)401191: 83 fa 06 cmp $0x6,%edx ; 循环次数不为6则爆炸401194: 75 06 jne 40119c <phase_5+0x63>401196: 3b 4c 24 08 cmp 0x8(%rsp),%ecx ; 元素累加和是否等于参数二，否则爆炸40119a: 74 05 je 4011a1 <phase_5+0x68>40119c: e8 e8 04 00 00 callq 401689 <explode_bomb>4011a1: 48 83 c4 18 add $0x18,%rsp4011a5: c3 retq
phase_6 链表/指针/结构
已知一个节点数为6的链表，需要将其重新排序，使得其满足“从大到小”的指向顺序。 具体而言，代码会将链表中的节点存入栈中，再将低一级的节点指向高一级节点，实现重新排序，而存入栈中的顺序由我们的输入指定。

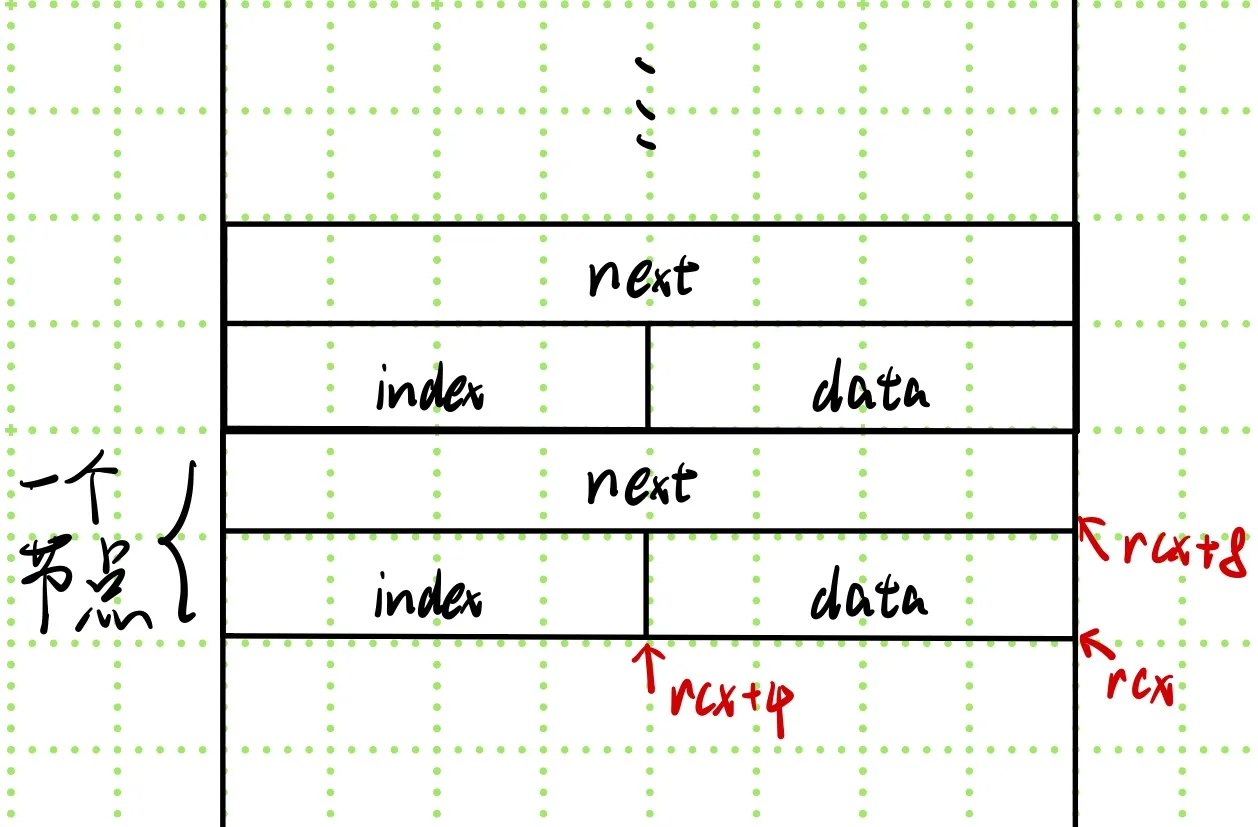

根据0x401238行，可知链表的首节点地址为0x6042f0，且指针前面的部分占8字节。

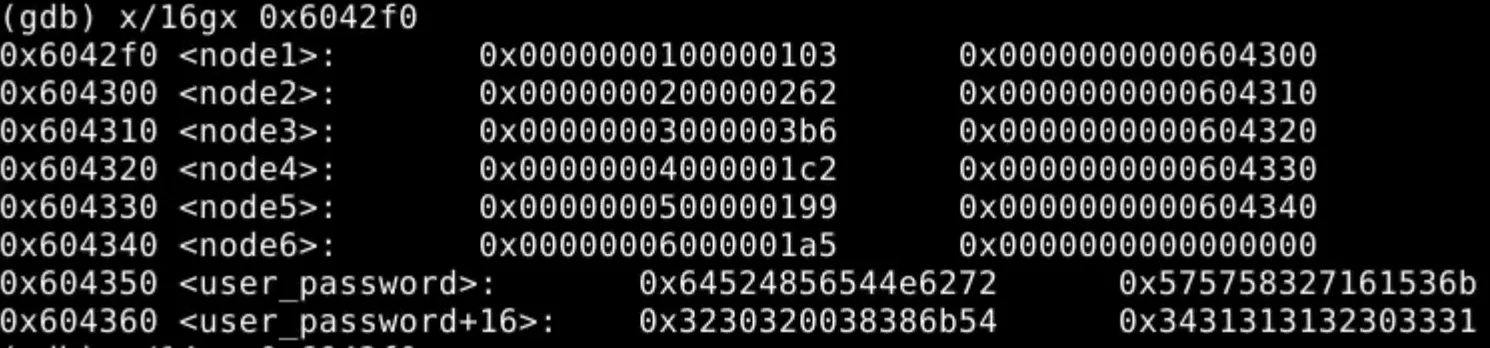

查看链表内容，结果如下图。
可以发现数据部分由序号和整数组成，而且这个链表刚好连续存储，于是结构体的声明如下：
typedef struct{ int data; // 数据 int index; // 序号 node* next; // 下一个节点} node;而节点被存入栈中（准备进行重新排序时），结构大概为：
于是答案为4 5 3 1 2 6。
-
phase_600000000004011a6 <phase_6>: ; 4 5 3 1 2 64011a6: 41 56 push %r144011a8: 41 55 push %r134011aa: 41 54 push %r124011ac: 55 push %rbp4011ad: 53 push %rbx4011ae: 48 83 ec 50 sub $0x50,%rsp4011b2: 4c 8d 6c 24 30 lea 0x30(%rsp),%r134011b7: 4c 89 ee mov %r13,%rsi ; 指定整数存储的起始地址0x30(%rsp)，读取6个整数(m0-m5)4011ba: e8 00 05 00 00 callq 4016bf <read_six_numbers>; 0x30(%rsp) -> 0x44(%rsp)4011bf: 4d 89 ee mov %r13,%r14 ; r14 = &(m0)4011c2: 41 bc 00 00 00 00 mov $0x0,%r12d; 六个整数都不大于6，且两两不等; 外循环 r13初值指向整数一4011c8: 4c 89 ed mov %r13,%rbp ; rbp = &(m)4011cb: 41 8b 45 00 mov 0x0(%r13),%eax ; eax = m4011cf: 83 e8 01 sub $0x1,%eax4011d2: 83 f8 05 cmp $0x5,%eax4011d5: 76 05 jbe 4011dc <phase_6+0x36> ; m是否小于等于6，不等则爆炸4011d7: e8 ad 04 00 00 callq 401689 <explode_bomb>; 内循环4011dc: 41 83 c4 01 add $0x1,%r12d ; 迭代器，遍历完剩余整数跳出4011e0: 41 83 fc 06 cmp $0x6,%r12d4011e4: 74 22 je 401208 <phase_6+0x62>4011e6: 44 89 e3 mov %r12d,%ebx4011e9: 48 63 c3 movslq %ebx,%rax ; 符号拓展，rax的值为迭代器4011ec: 8b 44 84 30 mov 0x30(%rsp,%rax,4),%eax ; eax = m_rax4011f0: 39 45 00 cmp %eax,0x0(%rbp)4011f3: 75 05 jne 4011fa <phase_6+0x54> ; 比较其与m是否相等，相等则爆炸4011f5: e8 8f 04 00 00 callq 401689 <explode_bomb>4011fa: 83 c3 01 add $0x1,%ebx4011fd: 83 fb 05 cmp $0x5,%ebx401200: 7e e7 jle 4011e9 <phase_6+0x43> ; 迭代器++，若未超过5则继续内循环401202: 49 83 c5 04 add $0x4,%r13 ; r13指向下一个整数，继续外循环401206: eb c0 jmp 4011c8 <phase_6+0x22>; 对6个数执行运算：m = 7 - m401208: 48 8d 74 24 48 lea 0x48(%rsp),%rsi ; rsi是第6个整数的末尾，即剩余空间的开头40120d: 4c 89 f0 mov %r14,%rax ; rax = &(m0)401210: b9 07 00 00 00 mov $0x7,%ecx401215: 89 ca mov %ecx,%edx401217: 2b 10 sub (%rax),%edx401219: 89 10 mov %edx,(%rax) ; m = 7 - m40121b: 48 83 c0 04 add $0x4,%rax ; rax++40121f: 48 39 f0 cmp %rsi,%rax401222: 75 f1 jne 401215 <phase_6+0x6f>401224: be 00 00 00 00 mov $0x0,%esi ; esi = 0401229: eb 20 jmp 40124b <phase_6+0xa5>; 循环 对6个整数m从m0到m5，将链表的第m个节点的地址“从低到高”依次存入栈中（起点为m5的尾端，即6个整数前的栈空间）; 若m<=1，则直接存入表头地址; 链表：; 0x6042f0为链表首节点的地址，下一个节点的值 = [上一个节点的值+8]（即单个节点的头部占8字节，尾部为next指针）; (0x100000103, 0x604300) -> (0x200000262, 0x604310) -> (0x3000003b6, 0x604320) -> (0x4000001c2, 0x604330) -> (0x500000199, 0x604340) -> (0x6000001a5, 0x0); 每一个节点包含三个部分——(int)data, (int)index, (node*)next40122b: 48 8b 52 08 mov 0x8(%rdx),%rdx ; 下一个节点的next指针（指向下下个节点），结果是rdx为链表第ecx个节点的地址（即下标为ecx-1的节点的地址）40122f: 83 c0 01 add $0x1,%eax401232: 39 c8 cmp %ecx,%eax401234: 75 f5 jne 40122b <phase_6+0x85> ; 循环使得eax = ecx, 【rdx = 链表第ecx个元素的地址】401236: eb 05 jmp 40123d <phase_6+0x97>401238: ba f0 42 60 00 mov $0x6042f0,%edx40123d: 48 89 14 74 mov %rdx,(%rsp,%rsi,2) ; rdx -> [rsp+2*rsi]401241: 48 83 c6 04 add $0x4,%rsi401245: 48 83 fe 18 cmp $0x18,%rsi401249: 74 15 je 401260 <phase_6+0xba> ; 存储完6个链表值40124b: 8b 4c 34 30 mov 0x30(%rsp,%rsi,1),%ecx ; ecx = m_rsi40124f: 83 f9 01 cmp $0x1,%ecx401252: 7e e4 jle 401238 <phase_6+0x92> ; 若ecx <= 1401254: b8 01 00 00 00 mov $0x1,%eax401259: ba f0 42 60 00 mov $0x6042f0,%edx40125e: eb cb jmp 40122b <phase_6+0x85> ; 若ecx > 1，则循环使得eax=ecx;循环 从栈顶（低到高）遍历链表节点，进行操作：低一级节点的next指针 = 高一级节点的地址401260: 48 8b 1c 24 mov (%rsp),%rbx401264: 48 8d 44 24 08 lea 0x8(%rsp),%rax401269: 48 8d 74 24 30 lea 0x30(%rsp),%rsi40126e: 48 89 d9 mov %rbx,%rcx ; rcx = [rsp]401271: 48 8b 10 mov (%rax),%rdx ; rdx = [rax]401274: 48 89 51 08 mov %rdx,0x8(%rcx) ; rdx -> [rcx+8]401278: 48 83 c0 08 add $0x8,%rax ; rax+=840127c: 48 39 f0 cmp %rsi,%rax40127f: 74 05 je 401286 <phase_6+0xe0> ; rax从[rsp+8]到[rsp+48]结束，即6个整数之前的栈空间401281: 48 89 d1 mov %rdx,%rcx ; rcx = rdx401284: eb eb jmp 401271 <phase_6+0xcb>401286: 48 c7 42 08 00 00 00 movq $0x0,0x8(%rdx) ; 0 -> 最高一级节点的next指针40128d: 00; 到这里，相当于利用栈结构对这个链表进行重新排序; 循环 遍历栈中的节点，检查：低一级的节点的数据 > 高一级节点的数据40128e: bd 05 00 00 00 mov $0x5,%ebp401293: 48 8b 43 08 mov 0x8(%rbx),%rax ; rax = 最低节点的next指针401297: 8b 00 mov (%rax),%eax ; eax = 最低节点的next节点的data401299: 39 03 cmp %eax,(%rbx)40129b: 7d 05 jge 4012a2 <phase_6+0xfc> ; 若最低节点的next节点的data > 最低节点的data 则爆炸40129d: e8 e7 03 00 00 callq 401689 <explode_bomb>4012a2: 48 8b 5b 08 mov 0x8(%rbx),%rbx ; rbx指向高一级节点4012a6: 83 ed 01 sub $0x1,%ebp4012a9: 75 e8 jne 401293 <phase_6+0xed>4012ab: 48 83 c4 50 add $0x50,%rsp4012af: 5b pop %rbx4012b0: 5d pop %rbp4012b1: 41 5c pop %r124012b3: 41 5d pop %r134012b5: 41 5e pop %r144012b7: c3 retq
secret_phase
（1）函数phase_defused
跟踪secret_phase的调用者，发现是函数phase_defused，而这个函数在main里的每一个阶段后都会调用，用以检查炸弹是否拆除。其代码如下：
-
phase_defused0000000000401827 <phase_defused>:401827: 48 83 ec 68 sub $0x68,%rsp40182b: bf 01 00 00 00 mov $0x1,%edi401830: e8 35 fd ff ff callq 40156a <send_msg>401835: 83 3d 60 2f 20 00 06 cmpl $0x6,0x202f60(%rip) ; 60479c <num_input_strings>40183c: 75 6d jne 4018ab <phase_defused+0x84> ; 需要程序已经读取了6个字符串，因此之后在执行完6个phase才会执行剩下的这部分代码40183e: 4c 8d 44 24 10 lea 0x10(%rsp),%r8401843: 48 8d 4c 24 08 lea 0x8(%rsp),%rcx401848: 48 8d 54 24 0c lea 0xc(%rsp),%rdx40184d: be 2b 29 40 00 mov $0x40292b,%esi ; 读取格式为"%d %d %s"401852: bf b0 48 60 00 mov $0x6048b0,%edi ; "5 2"401857: b8 00 00 00 00 mov $0x0,%eax40185c: e8 cf f3 ff ff callq 400c30 <__isoc99_sscanf@plt>401861: 83 f8 03 cmp $0x3,%eax401864: 75 31 jne 401897 <phase_defused+0x70> ; 需要eax=3，即读取到3个参数401866: be 34 29 40 00 mov $0x402934,%esi40186b: 48 8d 7c 24 10 lea 0x10(%rsp),%rdi401870: e8 69 fb ff ff callq 4013de <strings_not_equal>401875: 85 c0 test %eax,%eax401877: 75 1e jne 401897 <phase_defused+0x70> ; 还需要与目标字符串一致"DrEvil"401879: bf 80 27 40 00 mov $0x402780,%edi40187e: e8 bd f2 ff ff callq 400b40 <puts@plt> ; 打印"Curses, you've found the secret phase!"401883: bf a8 27 40 00 mov $0x4027a8,%edi401888: e8 b3 f2 ff ff callq 400b40 <puts@plt> ; 打印"But finding it and solving it are quite different..."40188d: b8 00 00 00 00 mov $0x0,%eax401892: e8 5f fa ff ff callq 4012f6 <secret_phase>401897: bf e0 27 40 00 mov $0x4027e0,%edi ; 打印"Congratulations! You've defused the bomb!"40189c: e8 9f f2 ff ff callq 400b40 <puts@plt>4018a1: bf 10 28 40 00 mov $0x402810,%edi4018a6: e8 95 f2 ff ff callq 400b40 <puts@plt> ; 打印"Your instructor has been notified and will verify your solution."4018ab: 48 83 c4 68 add $0x68,%rsp4018af: c3 retq
根据第0x401835行可知，函数剩余的部分只有在程序读取完6个字符串之后才能执行，因此secret只有在phase_6之后才能出现。

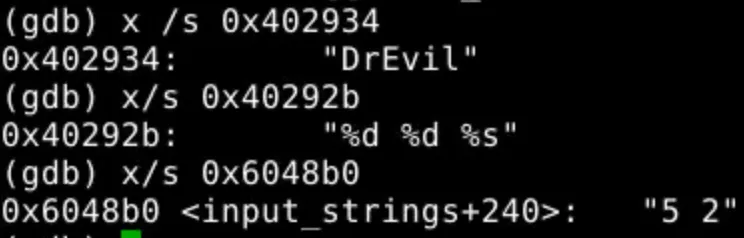

可以发现，函数中有很多奇怪的常数地址，通过gdb打印结果如下：
结合先前phase_4的输入是5 2，且此处地址提示<inpupt_strings+240>，猜想是需要在phase_4的答案后追加字符串”DrEvil”，尝试发现确实如此——
（2）函数secret_phase

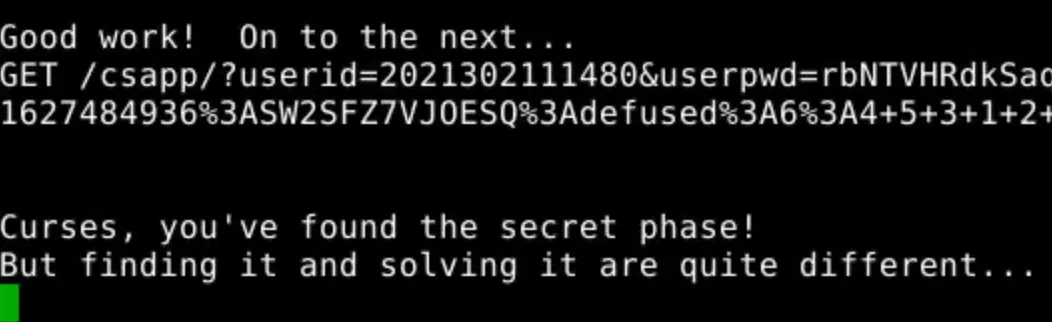

该函数会接收终端的标准输入（如先前图中所示的绿标），之后将其转化为long类型处理。
而程序的规则有二：
- 输入不得超过1001；
- 调用函数
fun7的返回值须为7。
于是重点就落在了对函数fun7的分析。

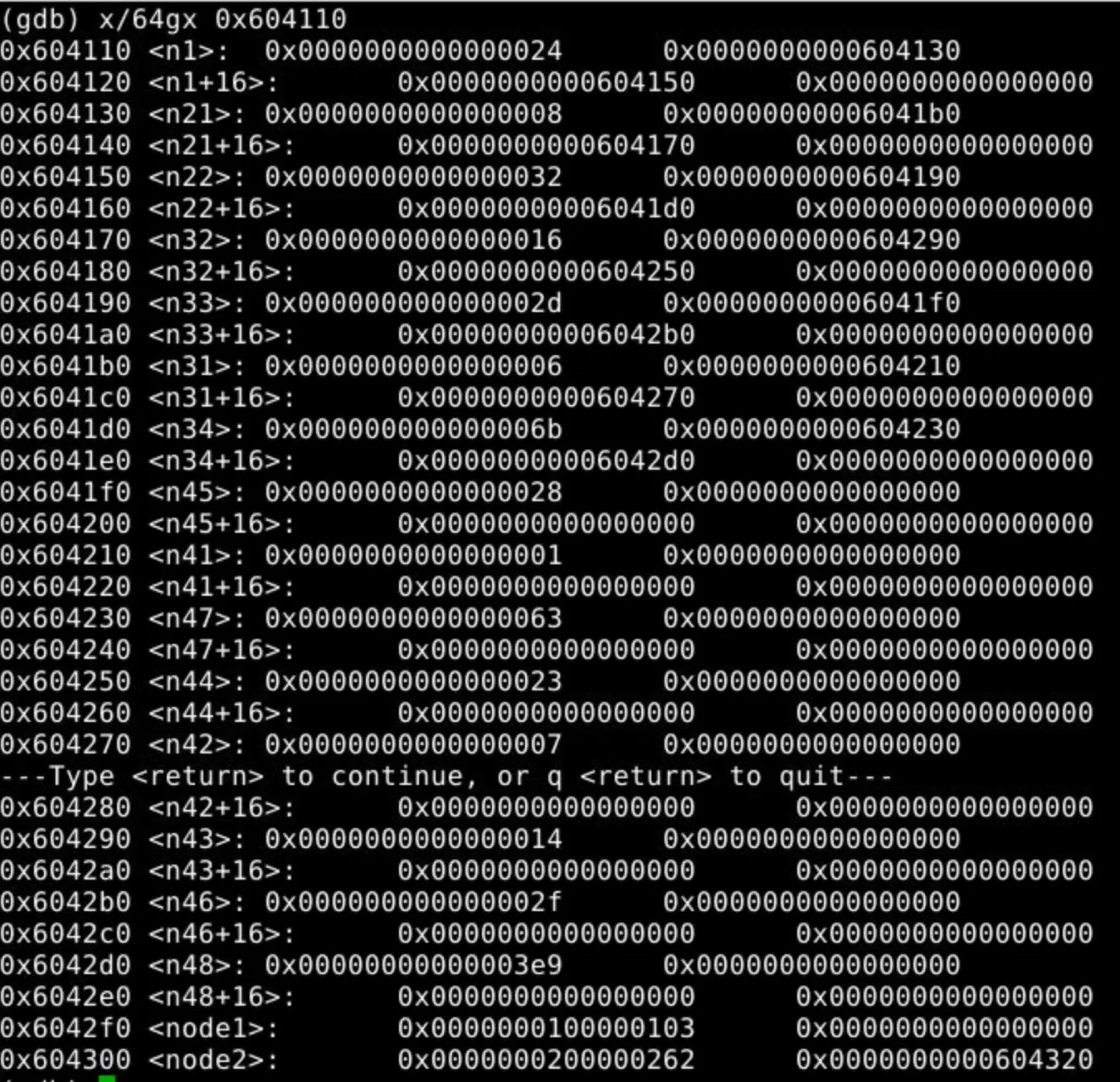

但在此之前，可以看到调用fun7时传入的参数除了我们的输入外还有一个地址0x604110，通过gdb打印查看——
可以发现这是一个链表（节点的后半段显然是地址，而且还有两个），而phase_6中的链表竟然就在下面，作者巧思啊hhhh
也因此可以猜测这是一个循环双链表or二叉树，又发现后面的节点几乎没有指针值，于是笃定是二叉树。
节点的声明大致为：
typedef struct{ long data; Node* first; Node* second;} Node;根据打印结果可知，结构体的内存分配为data的8字节 + n1的8字节 + n2的8字节。 一般我习惯认为data是4字节的int类型，而这里占8字节为了数据对齐；但由于另一个需要我输入的参数被转化为了long类型，这里大概率要保持一致。
-
secrets_phase00000000004012f6 <secret_phase>:4012f6: 53 push %rbx4012f7: e8 05 04 00 00 callq 401701 <read_line> ; 接收终端输入4012fc: ba 0a 00 00 00 mov $0xa,%edx401301: be 00 00 00 00 mov $0x0,%esi401306: 48 89 c7 mov %rax,%rdi ; rdi = rax = (string)"m"401309: e8 f2 f8 ff ff callq 400c00 <strtol@plt> ; 输入字符m转化为长整型 (long)m40130e: 48 89 c3 mov %rax,%rbx ; rbx = m401311: 8d 40 ff lea -0x1(%rax),%eax401314: 3d e8 03 00 00 cmp $0x3e8,%eax401319: 76 05 jbe 401320 <secret_phase+0x2a> ; 需要m-1 <= 0x3e8 ，即 m <= 100140131b: e8 69 03 00 00 callq 401689 <explode_bomb>401320: 89 de mov %ebx,%esi ; esi = m401322: bf 10 41 60 00 mov $0x604110,%edi401327: e8 8c ff ff ff callq 4012b8 <fun7>40132c: 83 f8 07 cmp $0x7,%eax40132f: 74 05 je 401336 <secret_phase+0x40> ; 需要eax = 7401331: e8 53 03 00 00 callq 401689 <explode_bomb>401336: bf 08 26 40 00 mov $0x402608,%edi ; 打印"Wow! You've defused the secret stage!"40133b: e8 00 f8 ff ff callq 400b40 <puts@plt>401340: e8 e2 04 00 00 callq 401827 <phase_defused>401345: 5b pop %rbx401346: c3 retq401347: 66 0f 1f 84 00 00 00 nopw 0x0(%rax,%rax,1)40134e: 00 00
（3）函数fun7
转化为C语言如下：
// n in %edi, m in %esifun7(Node* n, long m){ // 即让n->second->second->second->data = m if(n == 0) return -1; long res, edx = *n;
if(edx < m){ n = n->second; res = fun7(n, m); return 2*res + 1; // 3 1 0 }else if(edx > m){ n = n->first; res = fun7(n, m); return 2*res; }else{ return 0; }}由于输入的值不可超过1001（0x3e8），因此须保证最后落脚的节点不可是<n48>；
而如果直接，会直接落脚在<n48>，因此需要在递归最深处再绕一下，走edx>m的分支，
我是笨蛋，要求只是不超过、而不是不能取等，我说怎么怎么都不可能🥹

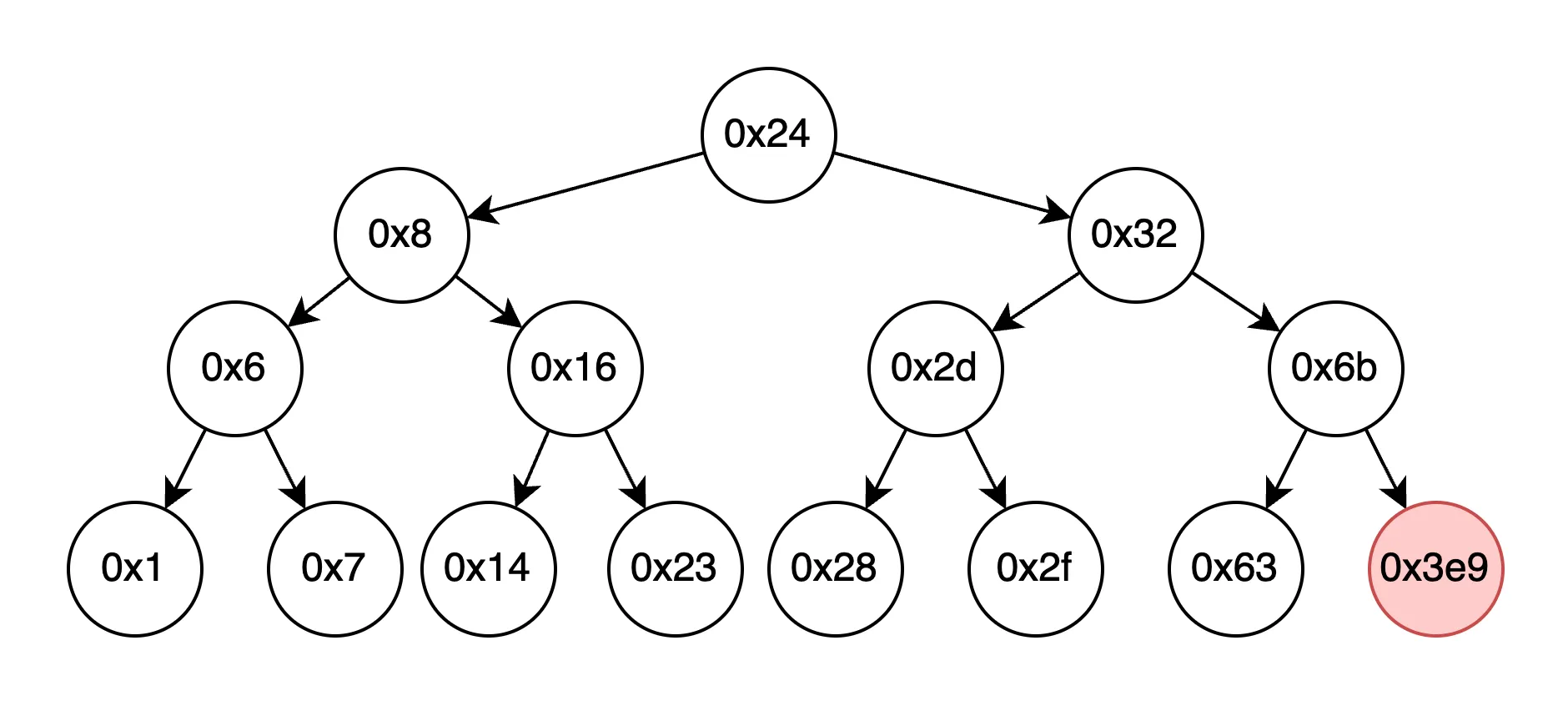

在捋路径的时候图方便把这个节点关系画了出来，发现竟然还是个二叉搜索树！（first左second右）
于是答案为1001
既然如此，节点结构体声明就应该是——
typedef struct{ long data; TNode* left; // first TNode* right; // second} TNode;
